Suspension - Rear: Description

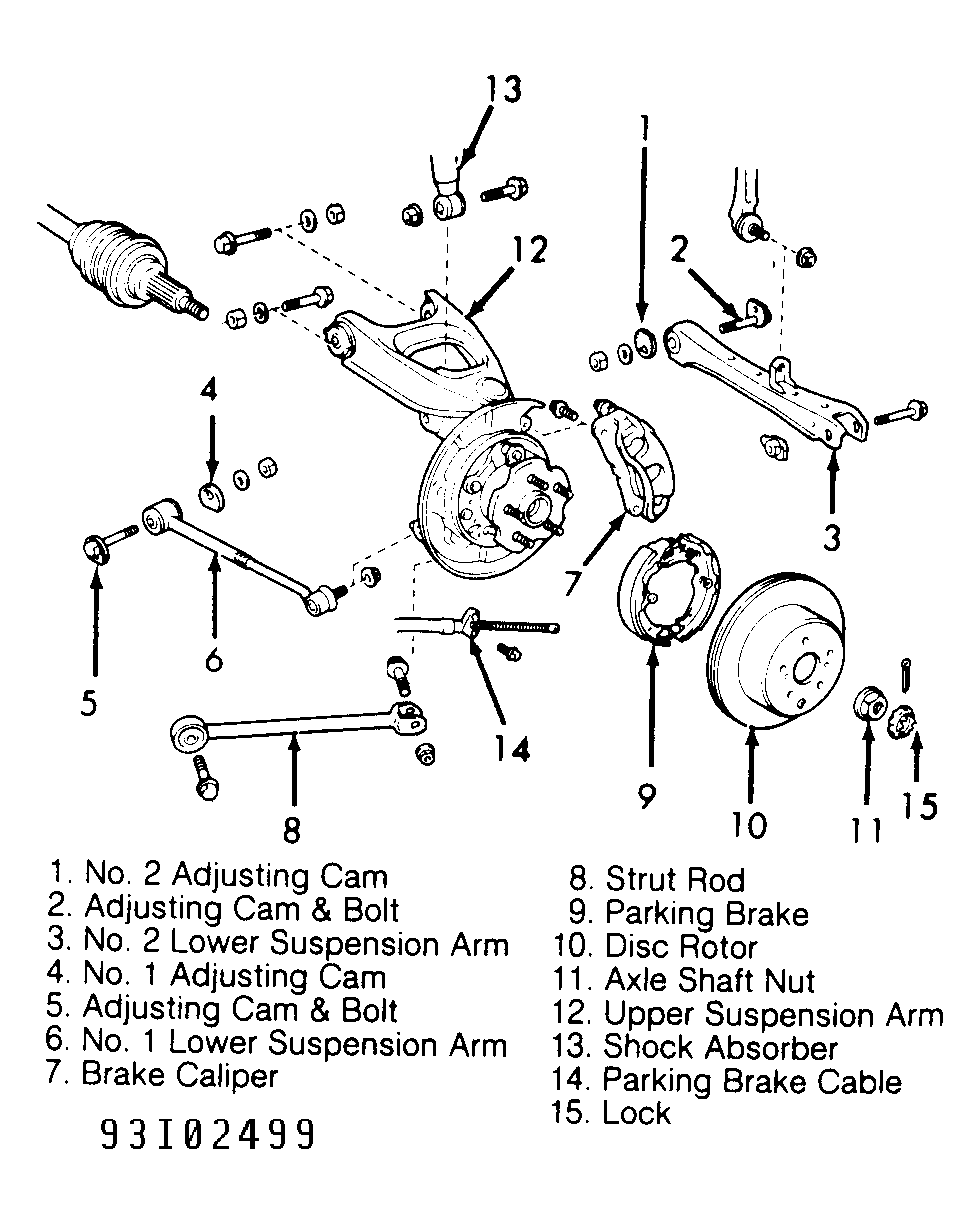

Rear suspension is fully independent type suspension using shock absorbers and stabilizer bar. Suspension arms are mounted by bushings and pivot bolts to body and axle carrier. See Fig 1.
Rear suspension is fully independent type suspension using shock absorbers and stabilizer bar. Suspension arms are mounted by bushings and pivot bolts to body and axle carrier. See Fig 1.
