Timing Belt Case: Installation

Install gasket and timing belt case. Apply thread sealant to top 3 threads, near bolt head, of 14-mm bolts. Install retaining bolts and nuts.
CAUTION: Ensure thread sealant is applied on the top 3 threads, near bolt head, of 14-mm bolts. Install proper length bolt in designated area. See Fig 1.
Tighten all bolts and nuts to specification. See appropriate TORQUE SPECIFICATIONS table. To install remaining components, reverse removal procedure.

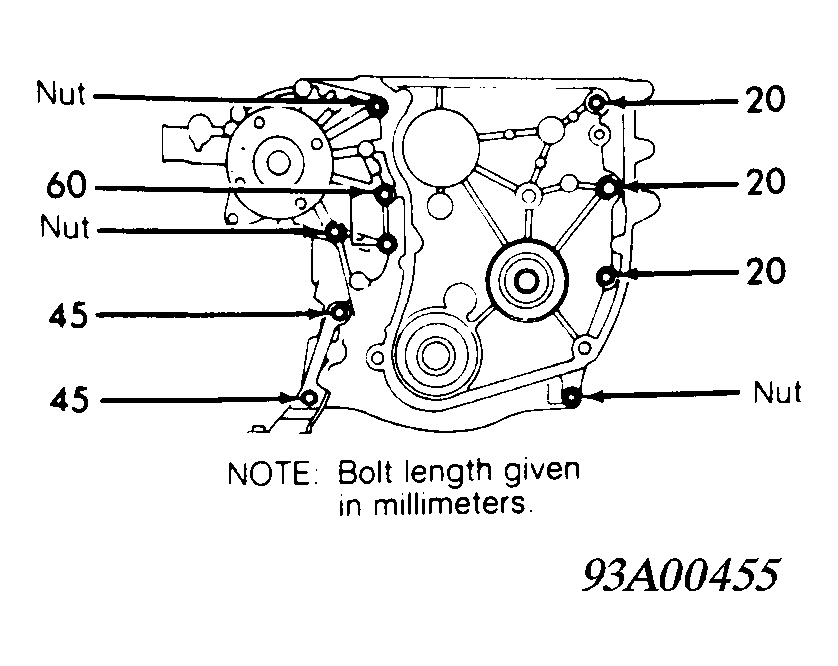

Fig 1: Timing Belt Case Bolt/Nut Locations & Bolt Length Id
