Installation (Supra)
- Ensure sealing surfaces are clean. Apply a bead of sealant on inside of bolt/nut holes and at center of oil pan sealing surface between bolt/nut holes.
- Install oil pan, and tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS TABLE - SUPRA To install remaining components, reverse removal procedure.

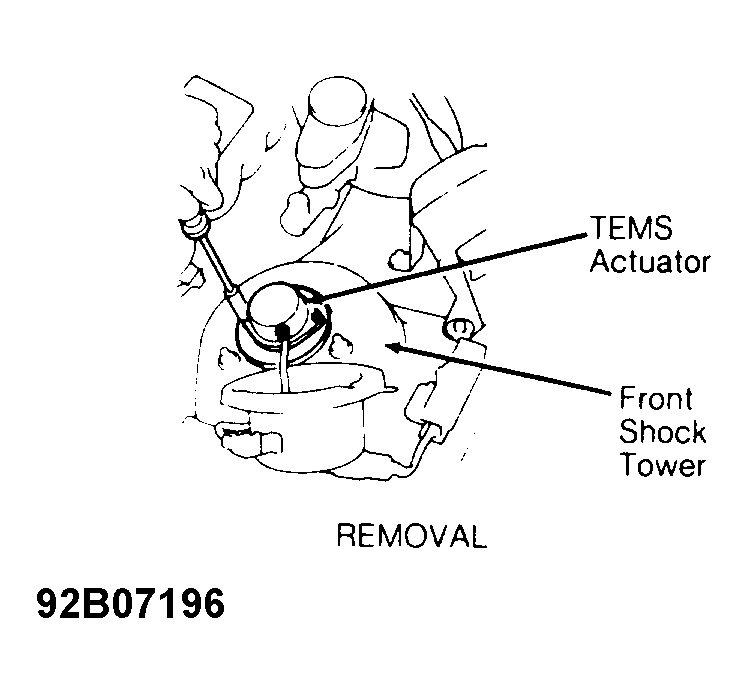

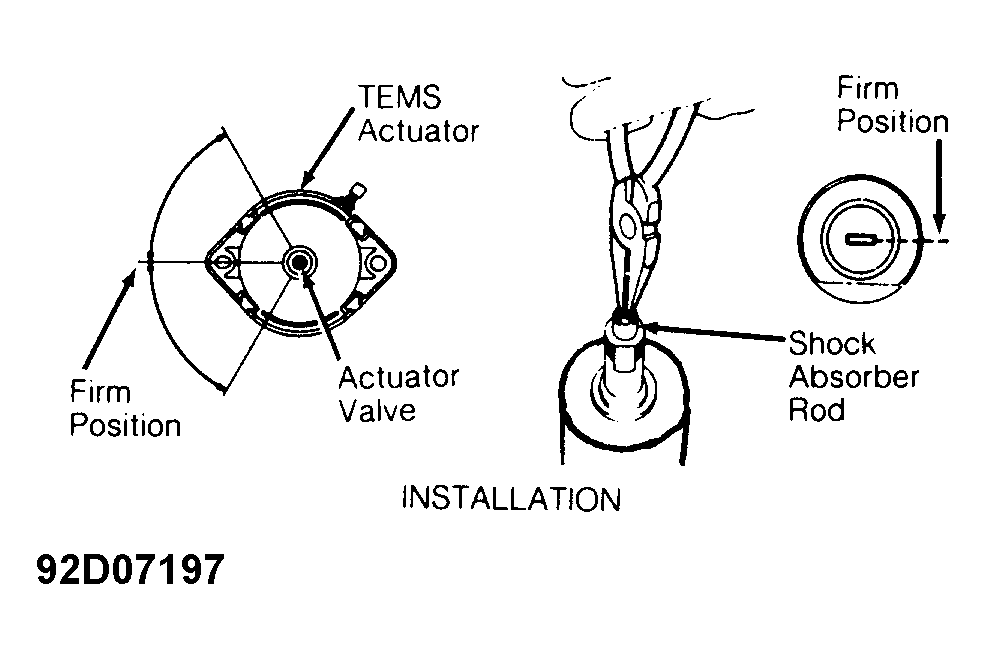

- Ensure actuator valve and shock absorber rod are positioned toward firm position before installing TEMS actuator. See Fig 1 and Fig 2
. Tighten all bolts/nuts to specification. See TORQUE SPECIFICATIONS TABLE - SUPRA Fill crankcase with oil. Check front wheel alignment.
