Front Brake Caliper

NOTE: For exploded view of front brake caliper assembly, use appropriate illustration. See Fig 1 or Fig 2 .

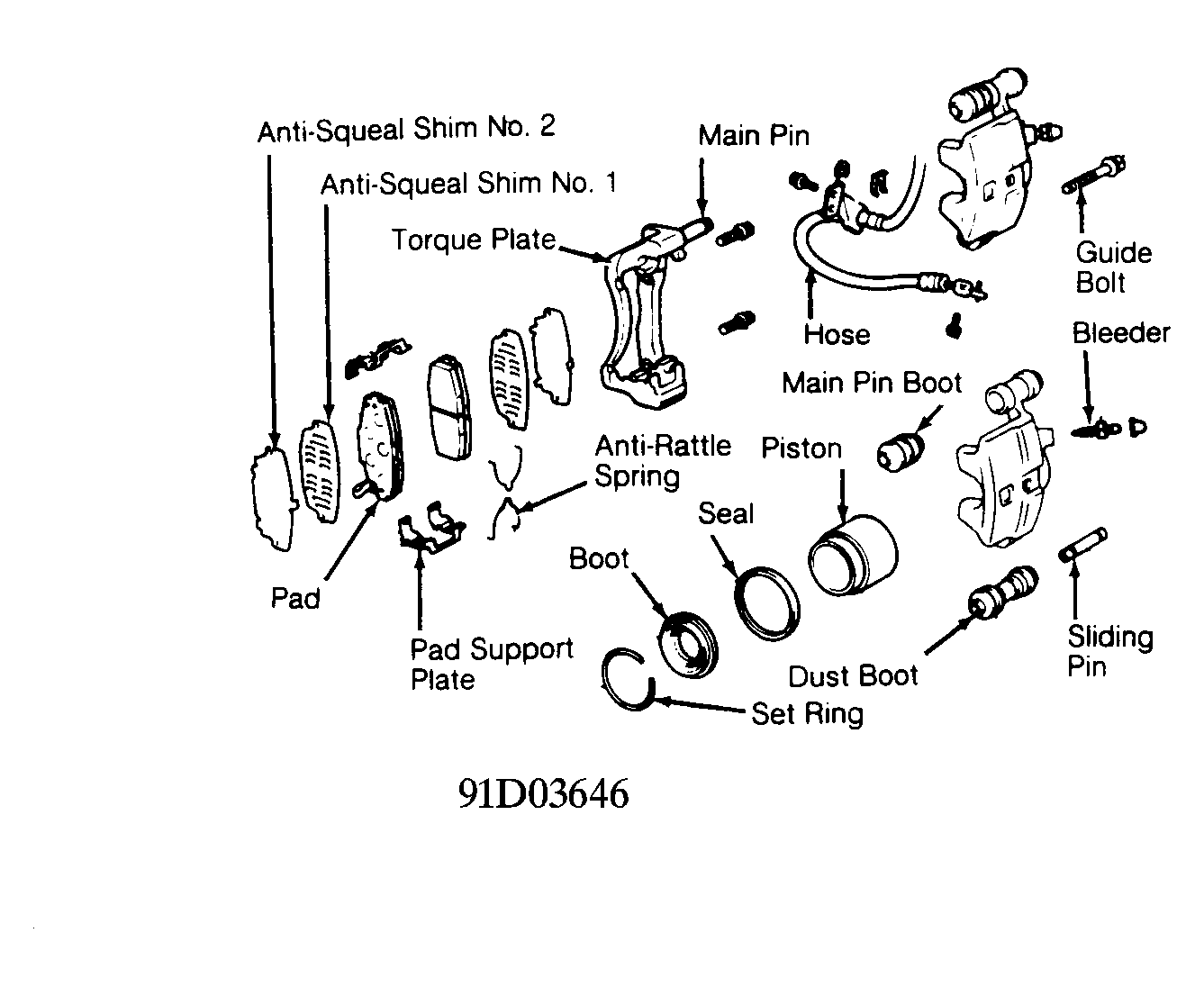

Fig 1: Front Brake Caliper Assembly (Supra; Cressida & MR2 Non-Turbo Similar)
G91D03646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

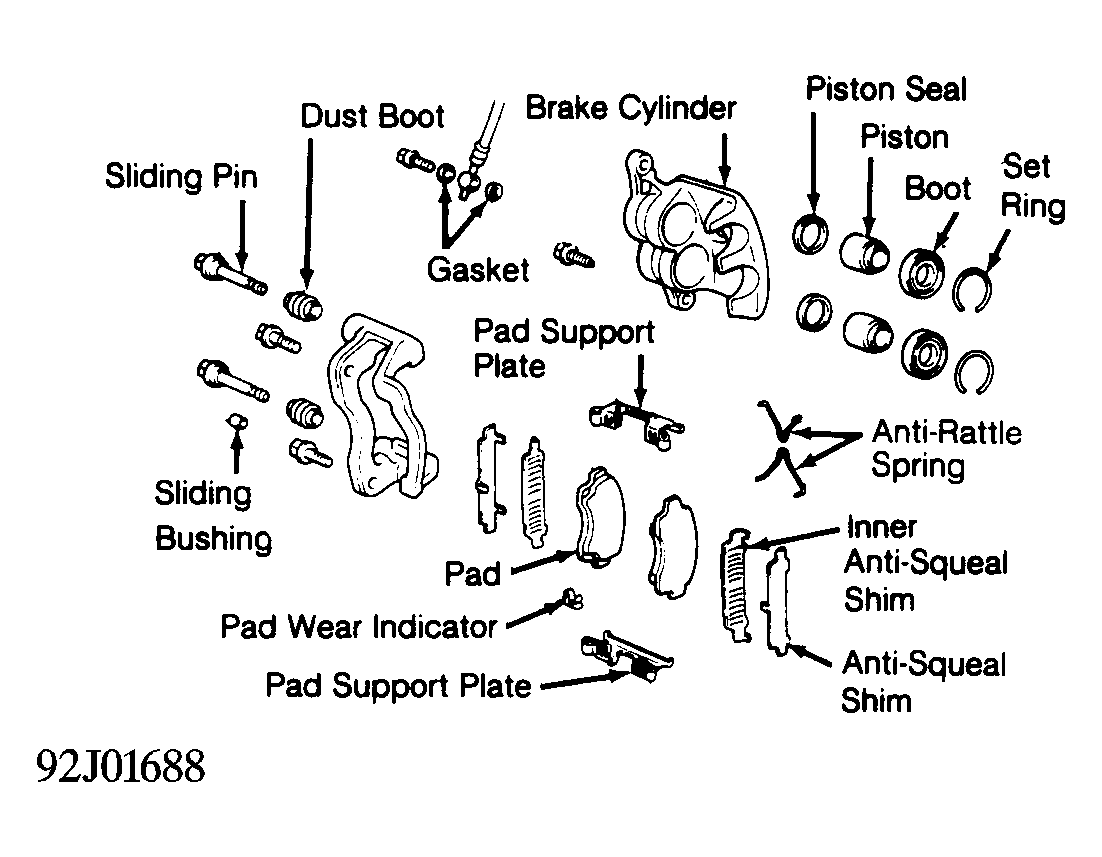

Fig 2: Front Brake Caliper Assembly (MR2 Turbo)
G92J01688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
