Fuel Tank Sending Unit Test

Connect a series of three 1.5-volt dry cell batteries. Connect positive lead of batteries to terminal No. 4 and negative lead to terminal No. 1. See Fig 1. Connect positive lead from voltmeter to terminal No. 2 and negative lead to terminal No. 1.

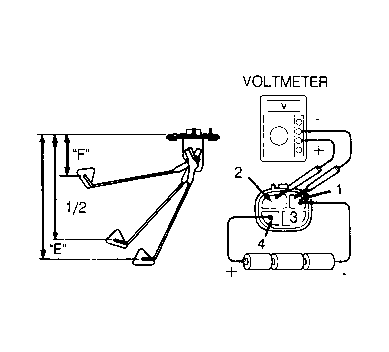

Fig 1: Testing Fuel Tank Sending Unit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Check that voltage changes between terminals No. 1 and 2 as sending unit float is moved from full to empty position. See FUEL TANK SENDING UNIT OUTPUT VOLTAGES table for correct readings. If readings are not as specified, replace sending unit.

FUEL TANK SENDING UNIT OUTPUT VOLTAGES

Fuel Level

⁽¹⁾ Voltage

Full

4.6

1/2 Tank

2.5

Empty

⁽¹⁾	Voltage specification is approximate.
