System Trouble Shooting

In order to trouble shoot instrument cluster remove combination meter with wire harness connected. Inspect combination meter connector. See Fig 1.

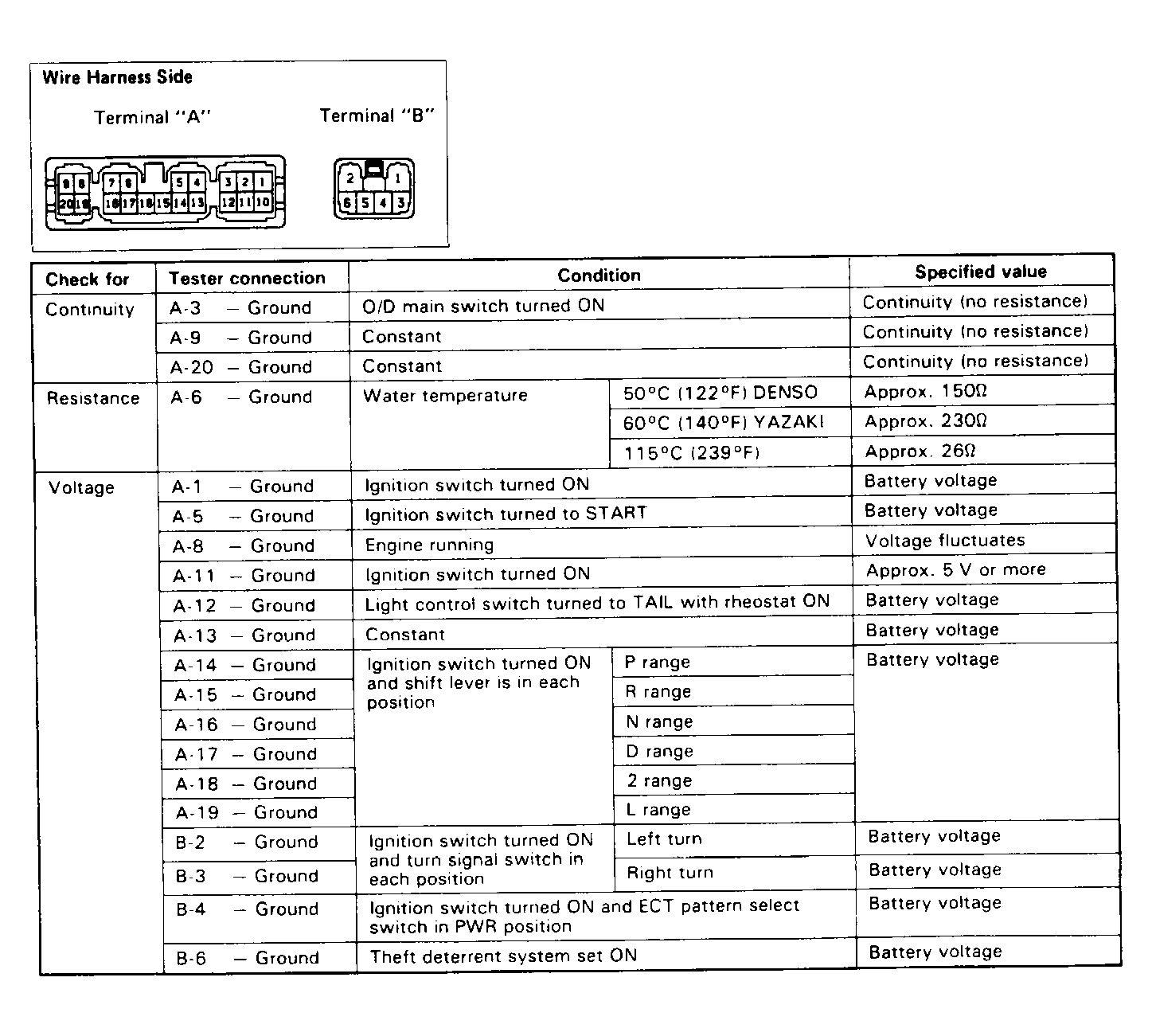

Fig 1: Cressida Instrument Panel Trouble Shooting Chart
