Fuel Gauge Resistance Test

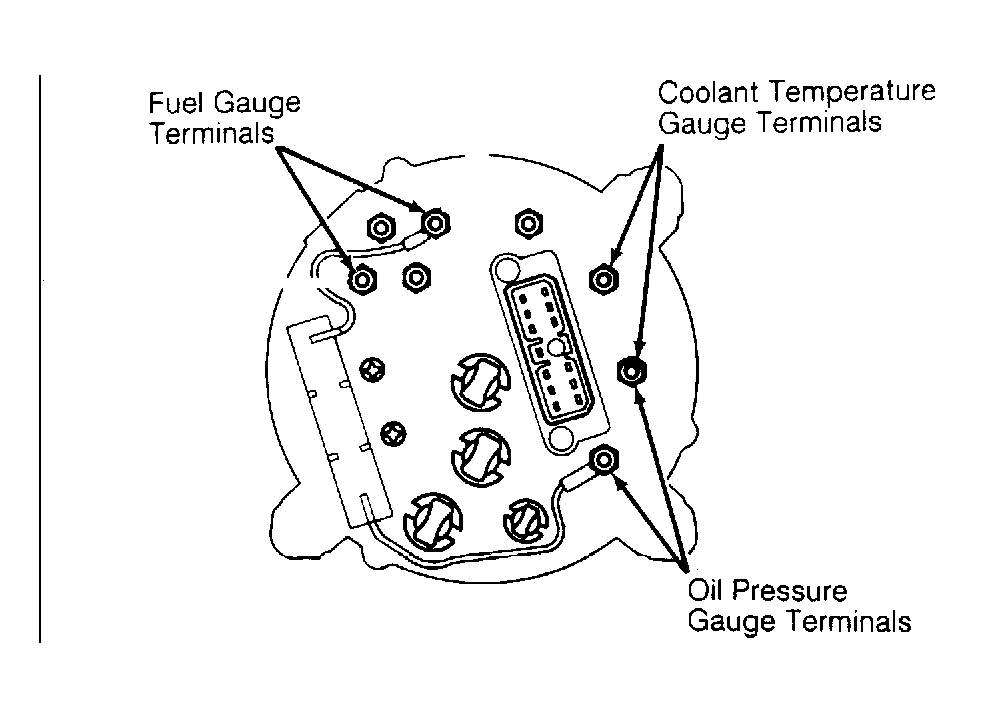

Check fuel gauge resistance by measuring across appropriate terminals with ohmmeter. See Fig 1 through Fig 8 . Ensure ignition is off and connector is unplugged. See FUEL GAUGE RESISTANCE SPECIFICATIONS table.
FUEL GAUGE RESISTANCE SPECIFICATIONS
| Application & Terminals | Ohms | ||
|---|---|---|---|
| Camry | |||
| Terminals "A" & "B" | 64 | ||
| Terminals "A" & "C" | 233 | ||
| Terminals "B" & "C" | 169 | ||
| Celica | |||
| With Voltmeter & Turbo | |||
| Terminals "A" & "B" | 83 | ||
| Terminals "A" & "C" | 234 | ||
| Terminals "B" & "C" | 151 | ||
| Without Voltmeter | |||
| Terminals "A" & "B" | 86 | ||
| Terminals "A" & "C" | 274 | ||
| Terminals "B" & "C" | 188 | ||

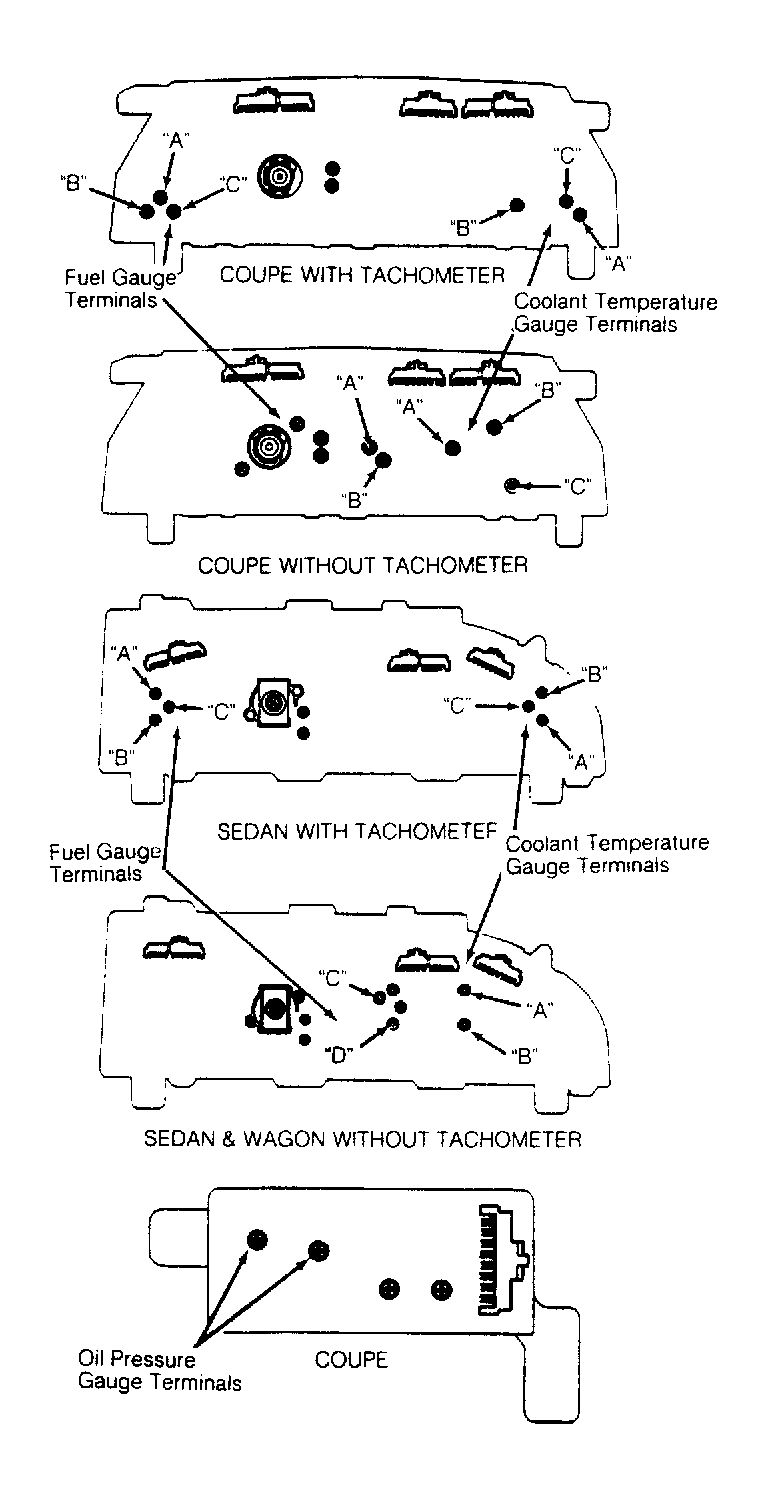

| Corolla Coupe | |||
| Terminals "A" & "B" | 160 | ||
| Terminals "A" & "C" | 250 | ||
| Terminals "B" & "C" | 85 | ||
| Sedan/Wagon | |||
| With Tachometer | |||
| Terminals "A" & "B" | 100 | ||
| Terminals "A" & "C" | 200 | ||
| Terminals "B" & "C" | 100 | ||
| Sedan/Wagon | |||
| Without Tachometer | |||
| Terminals "C" & "D" | 55 | ||
| Cressida | |||
| Terminals "A" & "B" | 102 | ||
| Terminals "A" & "C" | 203 | ||
| Terminals "B" & "C" | 101 | ||
| Land Cruiser | 55 | ||
| Tercel | 55 | ||
| Pickup & 4Runner | |||
| With Tachometer | |||
| Terminals "A" & "B" | 123 | ||
| Terminals "A" & "C" | 260 | ||
| Terminals "B" & "C" | 137 | ||
| Without Tachometer | |||
| Terminals "A" & "B" | 55 | ||

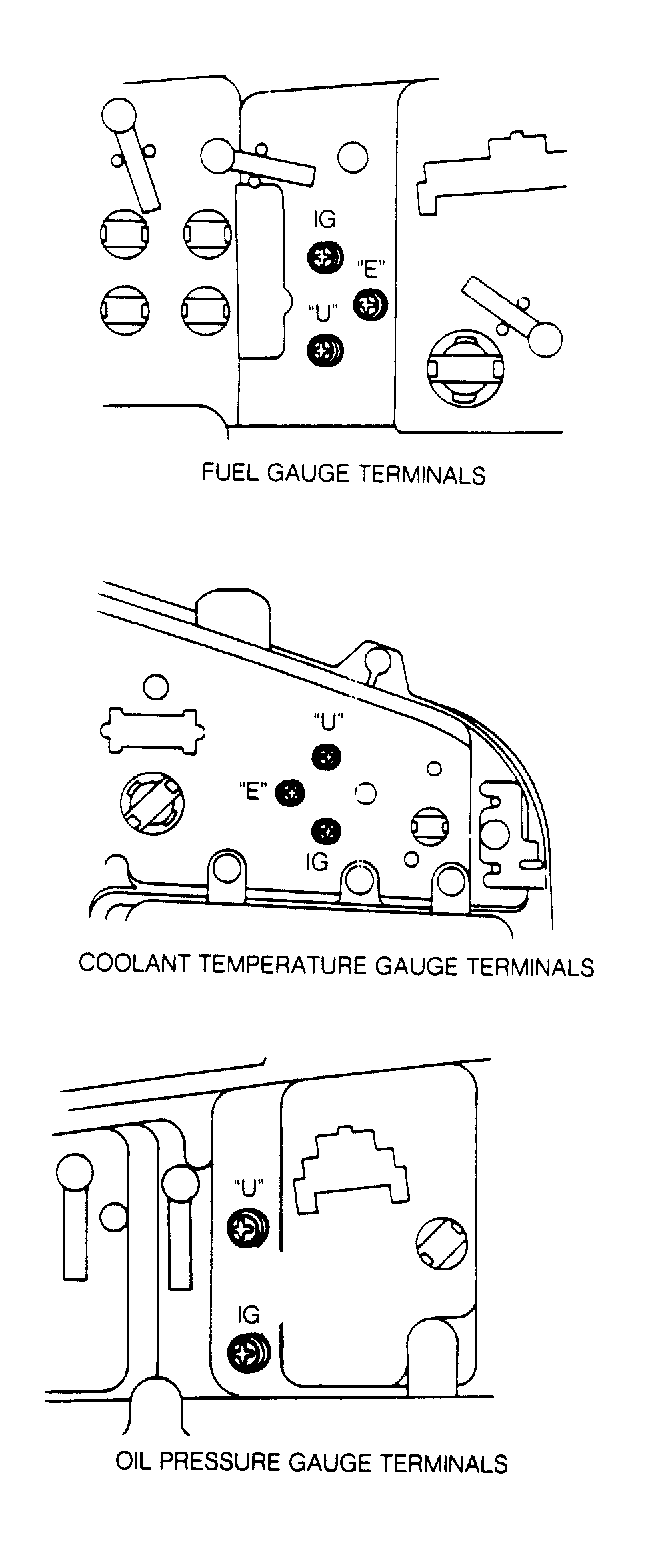

| Supra | |||
| Terminals IG & "U" | 103 | ||
| Terminals IG & "E" | 167 | ||
| Terminals "U" & "E" | 65 | ||
