Front Pads: Installation

  1. Install new pad support plates on torque plate. Put new pad wear indicators on pads. Arrow on wear indicators must point in direction rotor turns. Put new anti-squeal shims on pads.
  2. Install pads on support plates. Press piston into caliper with "C" clamp or wooden hammer handle. Install caliper carefully so that piston dust boot DOES NOT wedge against brake pads.
  3. Check reservoir fluid level. Tighten bolts to specification. See TORQUE SPECIFICATIONS  at end of this article.

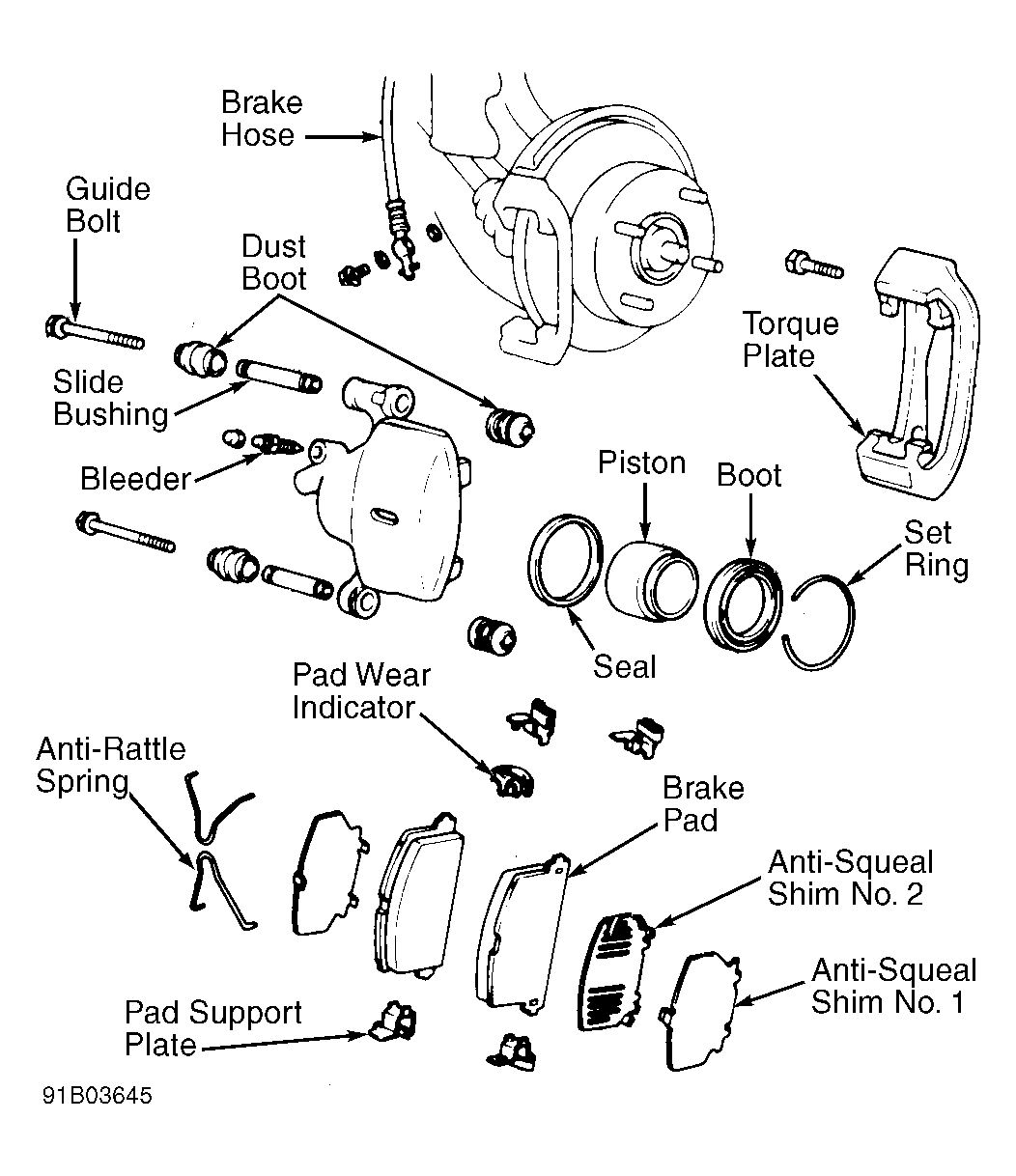

Fig 1: Exploded View of Sliding Caliper Assembly
G91B03645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
