Suspension - Rear: Identification

For an exploded view see Fig 1.

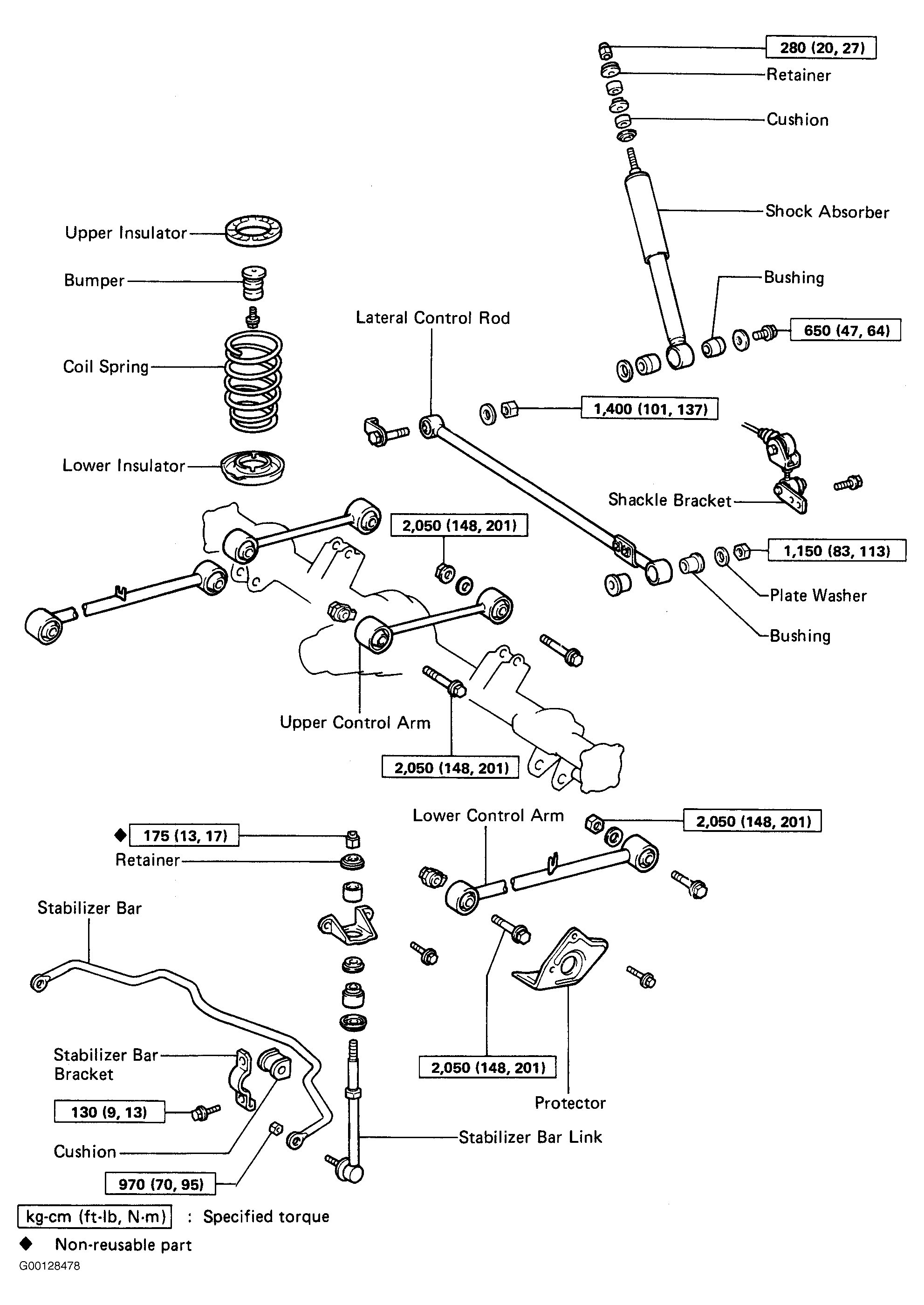

Fig 1: Exploded View Of Rear Suspension

G00128478

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
