Rear Suspension (Camry, Celica & Corolla FWD)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 1991 Toyota Tercel, 1991 Toyota Supra, 1991 Toyota Previa, 1991 Toyota Pickup, and 1991 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure rear camber is correctly set. See WHEEL ALIGNMENT SPECIFICATIONS . If adjustment is necessary, see appropriate adjustment procedure.
  2. Bounce both ends of vehicle several times to settle suspension. Measure distance between each wheel rim and corner of cam bracket to ensure both distances are the same. See Fig 1 or Fig 2.
  3. Ensure toe-in is within specification. See WHEEL ALIGNMENT SPECIFICATIONS . If necessary, adjust toe-in by turning adjustment cams.

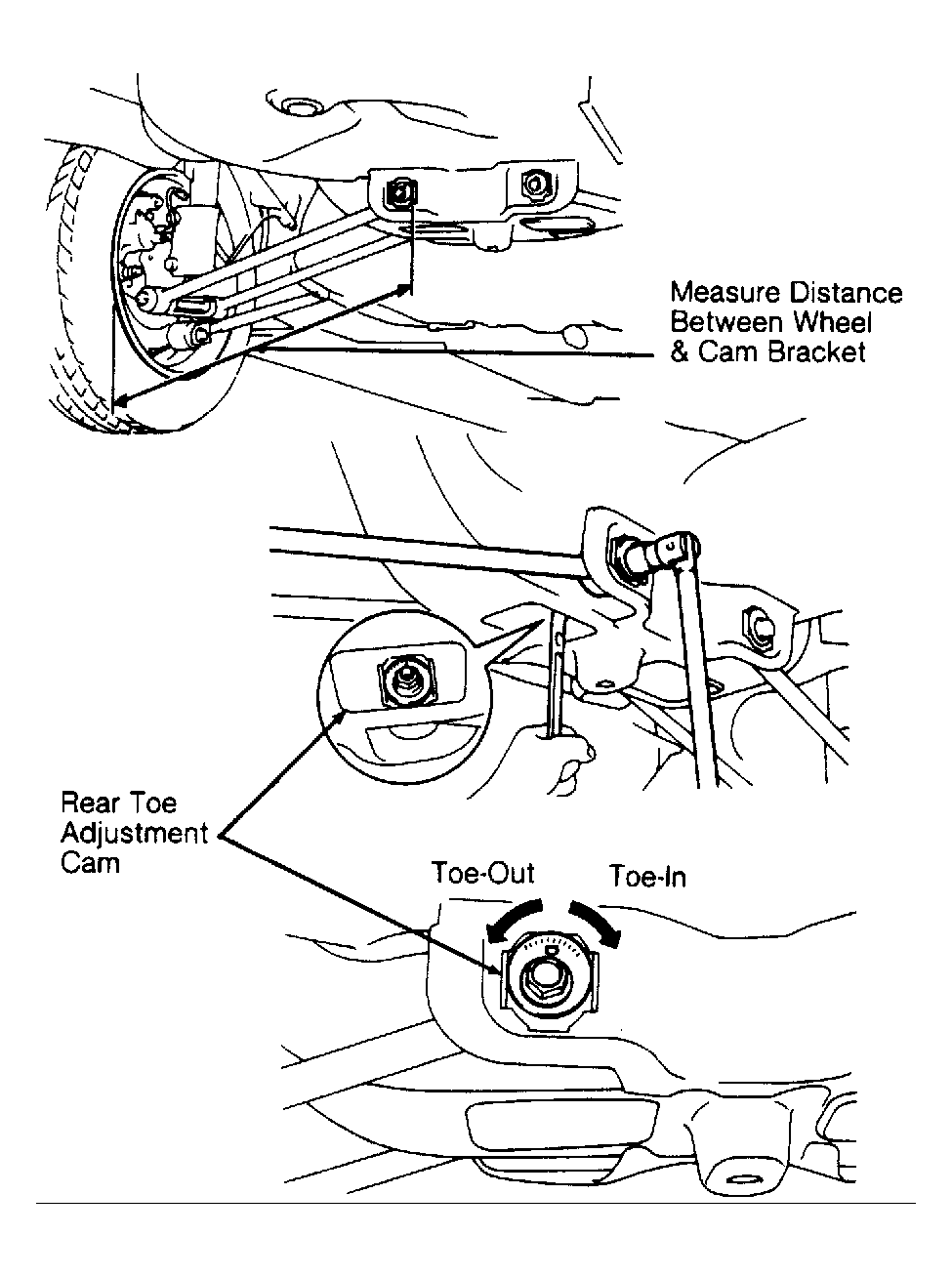

Fig 1: Rear Toe Adjustment Cam (Camry & Corolla)
G91G02894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

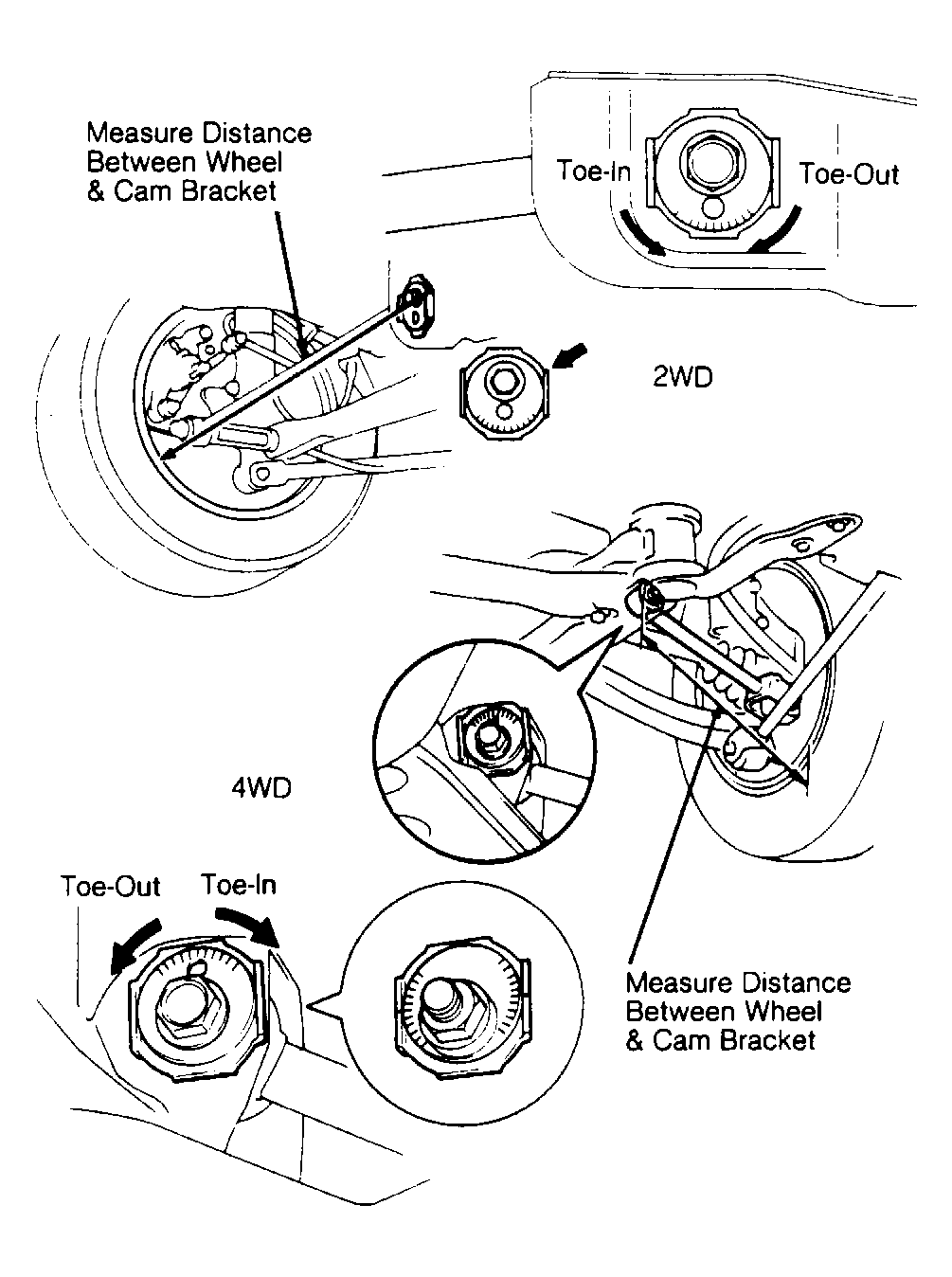

Fig 2: Rear Toe Adjustment Cam (Celica)
G91J02895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
