Front Suspension (Supra)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 1991 Toyota Tercel, 1991 Toyota Supra, 1991 Toyota Previa, 1991 Toyota Pickup, and 1991 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure riding height, camber and steering axis inclination are correctly set. See WHEEL ALIGNMENT SPECIFICATIONS . If adjustment is necessary, see appropriate adjustment procedure.

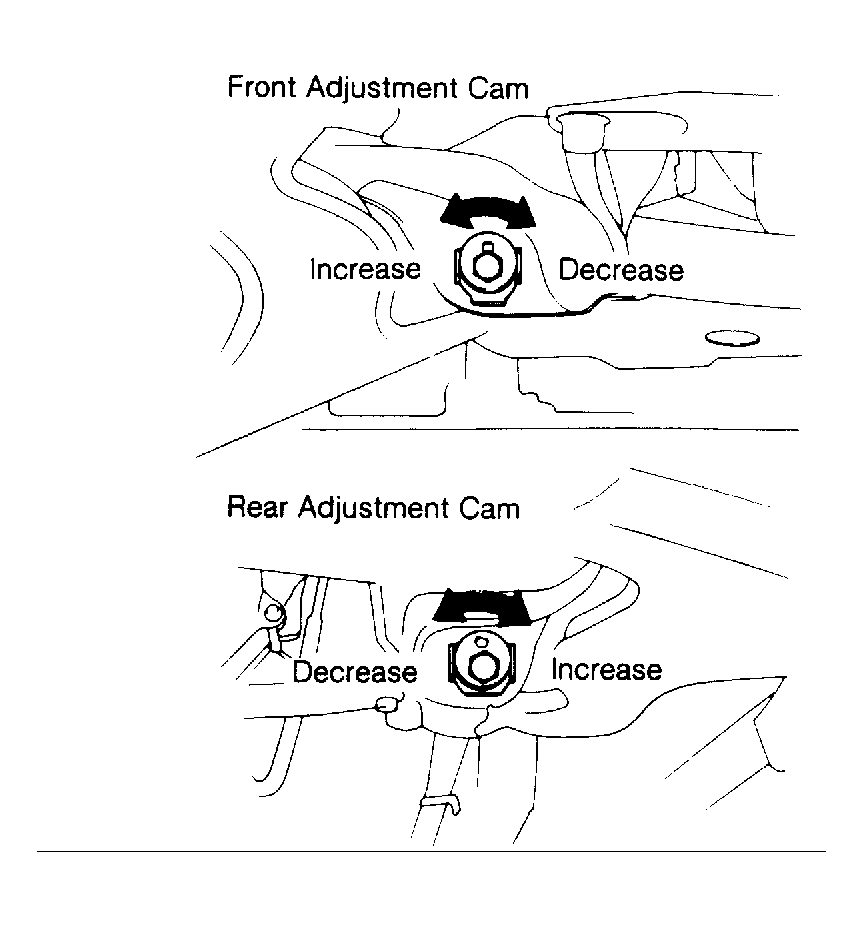

  2. Check caster of both front wheels. If caster is not within specification, loosen and turn adjustment cams. See Figure.
