Propeller Shaft: Reassembly

  1. Apply MP grease to the propeller shaft spline and sleeve yoke sliding surface. Align the matchmarks on the sleeve yoke and the propeller shaft. Insert sleeve yoke into propeller shaft. See Figure. Ensure shafts are properly aligned. See Fig 1.

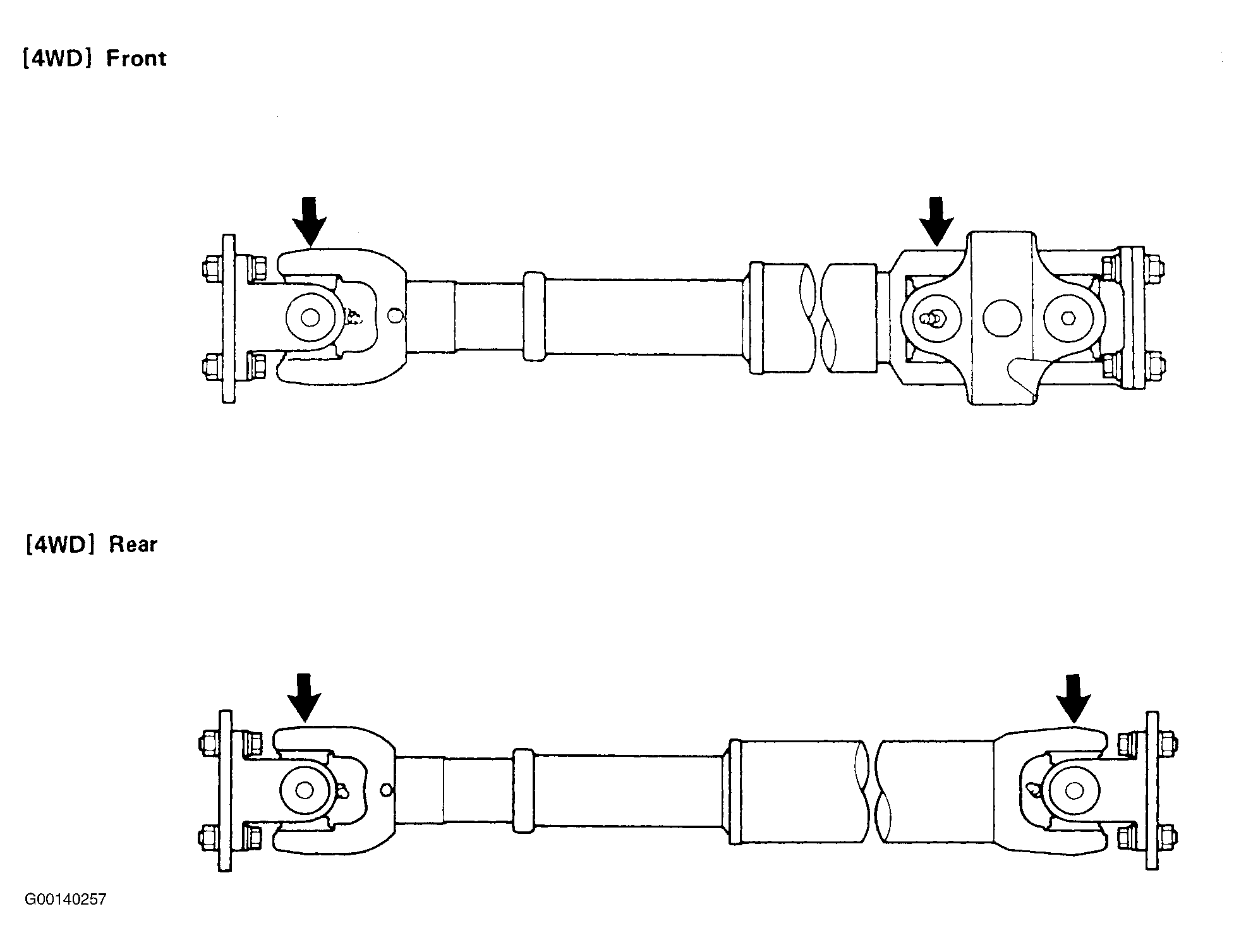

    Fig 1: Identifying Front & Rear Propeller Shaft Assemblies
    G00140257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
