Trouble Shooting: Vibration

Check propeller shaft runout. Check propeller shaft balance, if propeller shaft is out of balance, balance as needed If transmission extension housing rear bushing is worn, replace bushing or replace extension housing as necessary. If sleeve yoke spline is stuck, replace yoke.

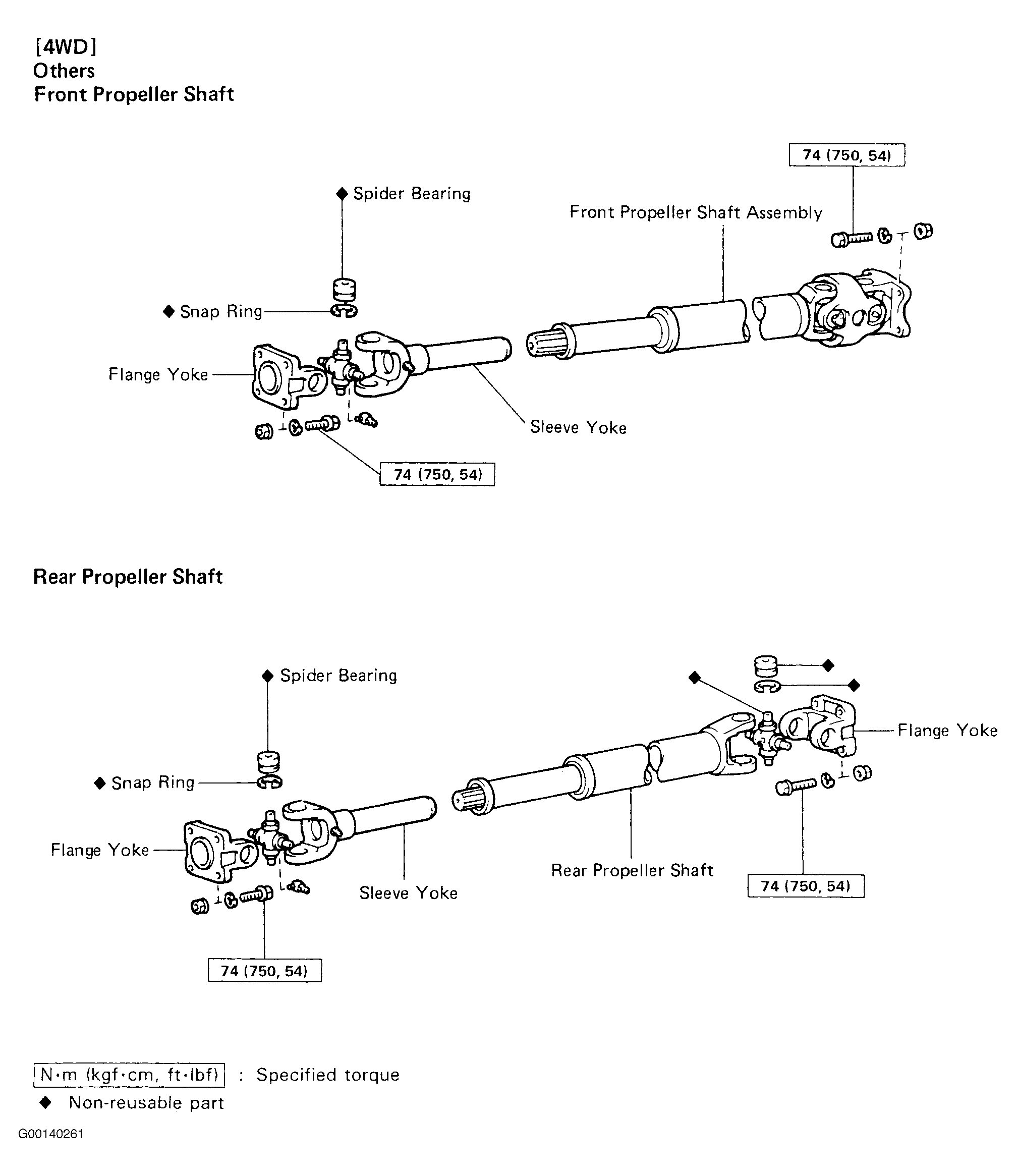

Fig 1: Exploded View Of Propeller Shaft
G00140261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
