Rear Drum Brake Shoes (4WD): Installation

Position brake shoes over wheel cylinders with front return spring hooked on inner side of shoe. Install hold-down springs. To complete installation, reverse removal procedures. Adjust brakes.

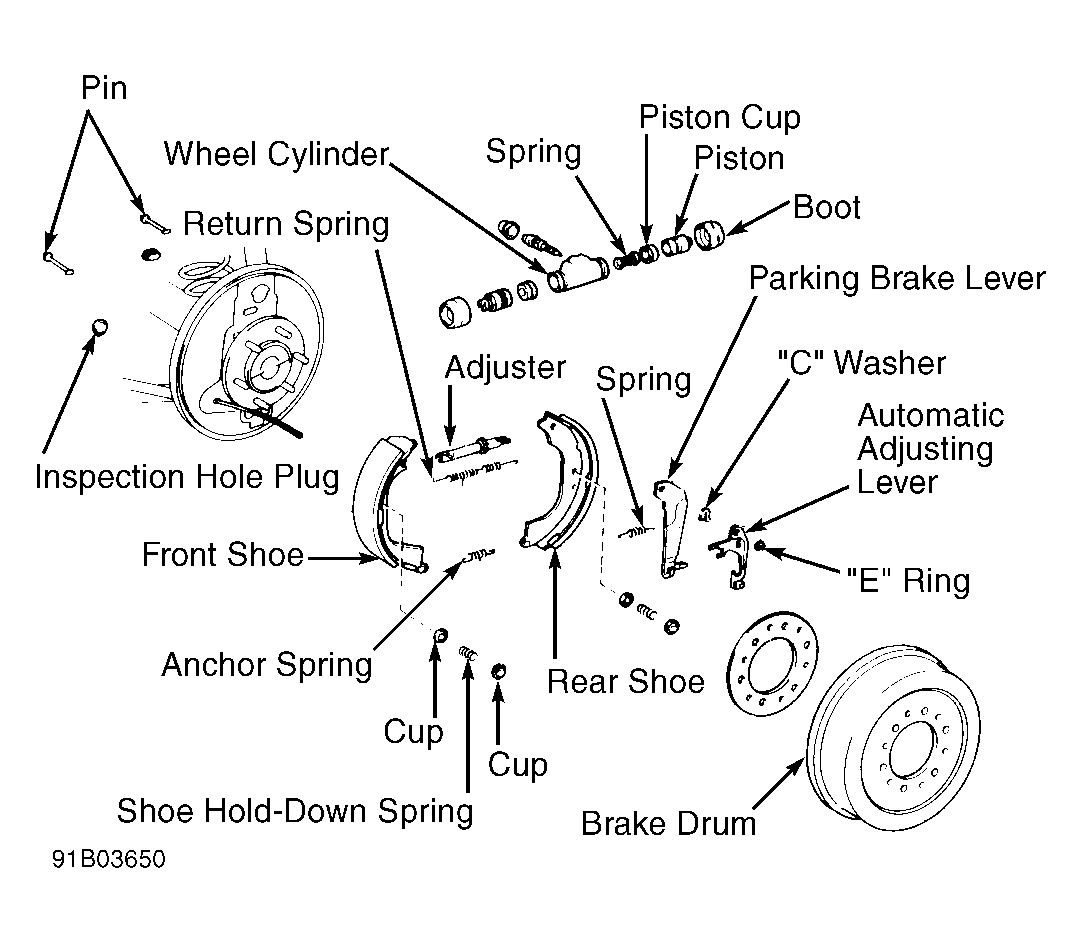

Fig 1: Exploded View of Rear Brakes (4WD)
