Rear Drum Brake Shoes (2WD): Installation

Install parking brake on lever and secure with new "C" washer. Ensure lever moves. To complete installation, reverse removal procedures. Install brake drum. Adjust brakes.

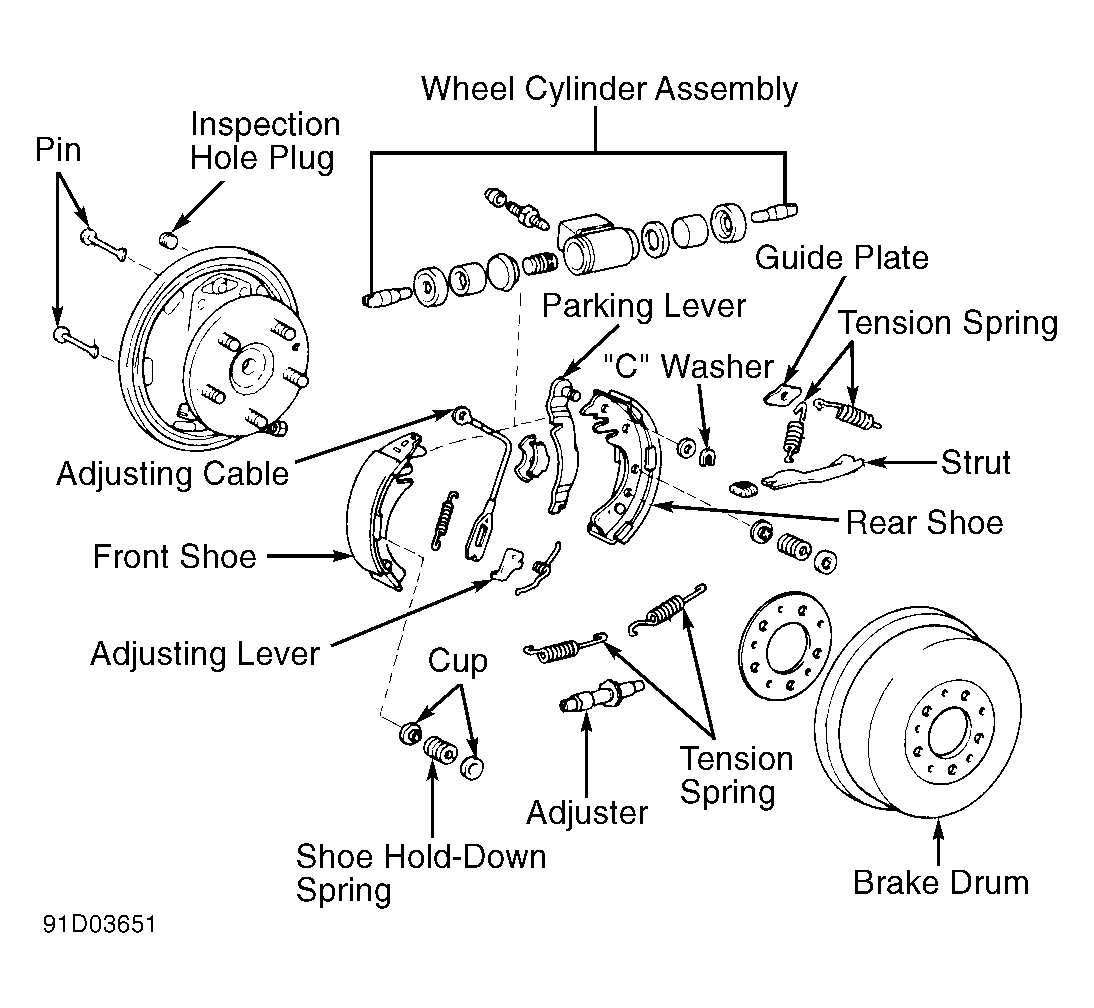

Fig 1: Exploded View of Rear Brakes (2WD)
