Front Pads (2WD): Installation

Push piston into caliper bore using "C" clamp or wooden hammer handle. Put new anti-squeal shim on back edge of outside pad. Reverse removal procedure to complete installation. Check level of fluid in reservoir and tighten cap.

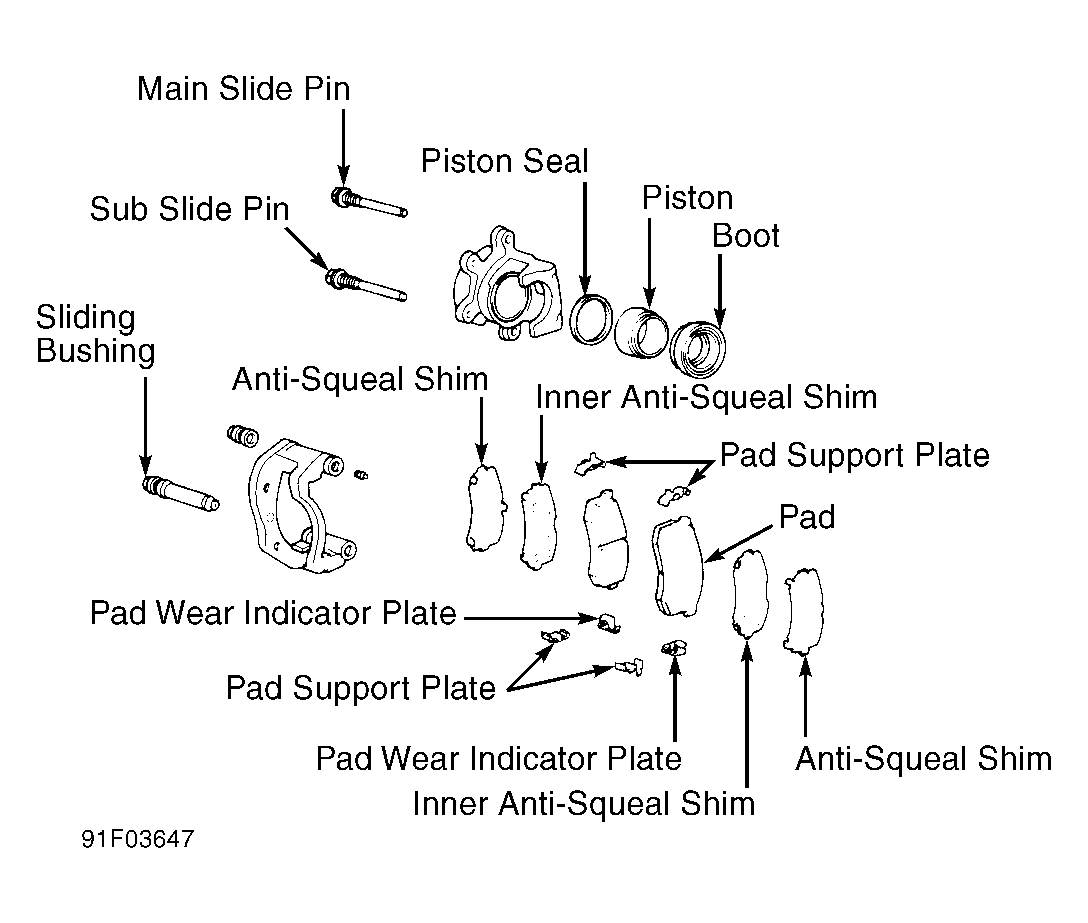

Fig 1: Typical Single Piston Caliper (Pickup 2WD Shown)
G91F03647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
