Fuel Gauge & Warning Light

1. Unplug connector at fuel tank sending unit. Connect a 12-volt, 3.4-watt test light between lead wire and ground. Turn ignition on. Test light should flash and needle should vibrate.
2. Turn ignition off. Connect ohmmeter to sending unit terminals. Move sender arm and ensure resistance varies within specifications. See FUEL SENDING UNIT RESISTANCE  table. Gauge pointer should move when sender is connected and float arm is moved.
   FUEL SENDING UNIT RESISTANCE



   Model	Float Position	Ohms
   Camry	Full	2-5
   Camry	Empty	107-113
   Land Cruiser	Full	15-19
   Land Cruiser	Half	35-45
   Land Cruiser	Empty	113-127
   All Others	Full	1-5
   All Others	Half	28-37
   All Others	Empty	102-118

3. To check low fuel warning light sensor, remove fuel sender from tank. Connect battery voltage to sensor terminal. Connect a 12-volt 3.4-watt test light between body of sending unit and ground. With sensor dry, light should come on within 40 seconds. With sensor in gasoline or water, light should not come on.

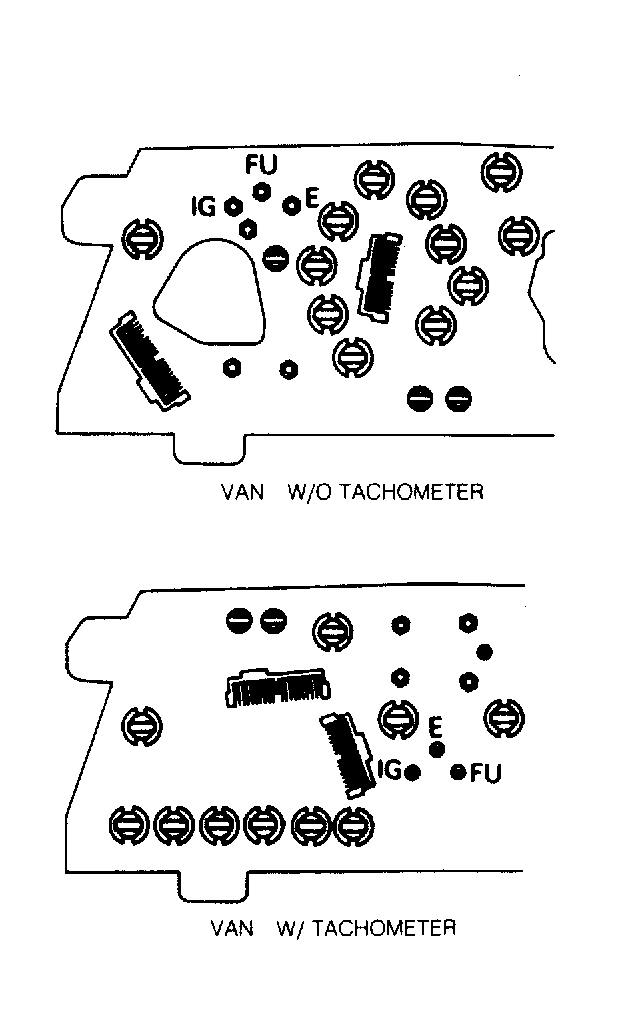

4. Check gauge resistance by measuring across terminals with ohmmeter. See Fig 19-Fig 31 . Ignition must be off and connector unplugged. See FUEL & TEMPERATURE GAUGE RESISTANCE  table.

Model Type		Term. Conn.	Fuel (Ohms)	Temp. (Ohms)
Camry		A-B	100	55
Camry		A-C	200	145
Camry		B-C	100	200
Celica		IG-FU	102	N/A
Celica		FU-E	101	N/A
Celica		IG-E	203	146
Celica		IG-TU	N/A	56
Celica		TU-E	N/A	202
Corolla
Sedan & Wagon w/o Tachometer		C-D	55	N/A
Sedan & Wagon w/o Tachometer		A-B	N/A	55
Sedan w/ Tachometer		A-B	100	55
Sedan w/ Tachometer		A-C	200	145
Sedan w/ Tachometer		B-C	100	200
Coupe		A-B	85	55
Coupe		A-C	250	135
Coupe		B-C	160	210
FX, FX-16		1-2	(1) 55	N/A
FX, FX-16		(2) IG-FU	102	N/A
FX, FX-16		(2) FU-E	101	N/A
FX, FX-16		(2) IG-E	203	N/A
FX, FX-16		(1) 1-2	N/A	55
FX, FX-16		(2) IG-TU	N/A	56
FX, FX-16		(2) TU-E	N/A	202
FX, FX-16		(2) IG-E	N/A	146
Cressida		IG-FU	92	N/A
Cressida		FU-E	116	N/A
Cressida		IG-E	208	135
Cressida		IG-TU	N/A	54
Cressida		TU-E	N/A	210
Land Cruiser		A-B	55	N/A
MR2		IG-FU	102	N/A
MR2		FU-E	101	N/A
MR2		IG-E	203	146
MR2		IG-TU	N/A	56
MR2		TU-E	N/A	202
Pickup & 4Runner		1-2	(1) 55	N/A
Pickup & 4Runner		IG-FU	(2) 83	N/A
Pickup & 4Runner		FU-E	(2) 156	N/A
Pickup & 4Runner		IG-E	239	(2) 273
Pickup & 4Runner		1-2	N/A	(1) 25
Pickup & 4Runner		IG-TU	N/A	(2) 135
Pickup & 4Runner		TU-E	N/A	(2) 138
Supra		IG-U	103	56
Supra		U-E	65	202
Supra		IG-E	167	146
Tercel
Sedan		C-D	55	N/A
Sedan		E-F	N/A	55
Wagon		IGN-FU	(1) Continuity	N/A
Wagon		IGN-FU	(2) Continuity	N/A
Wagon		FU-E	(2) Continuity	N/A
Wagon		IGN-E	(2) Continuity	N/A
Wagon		TU-1	N/A	(1) Continuity
Wagon		IGN-TU	N/A	(2) Continuity
Wagon		TU-E	N/A	(2) Continuity
Wagon		IGN-E	N/A	(2) Continuity
Van		IG-FU	(1) 125	N/A
Van		FU-E	(1) 55	N/A
Van		IG-E	(1) 70	N/A
Van		1-TU	N/A	(1) 55
Van		IG-FU	(2) 64	N/A
Van		FU-E	(2) 169	N/A
Van		IG-E	(2) 233	N/A
Van		IG-TU	N/A	(2) 55
Van		TU-E	N/A	(2) 125
Van		IG-E	N/A	(2) 70
(1) For models without tachometer. (2) For tachometer equipped models.
