Rear Brake Shoes: Installation

Position brake shoes over wheel cylinders with front return spring hooked on inner side of shoe. Install hold-down springs. Complete installation by reversing removal procedure. Adjust and bleed brakes.

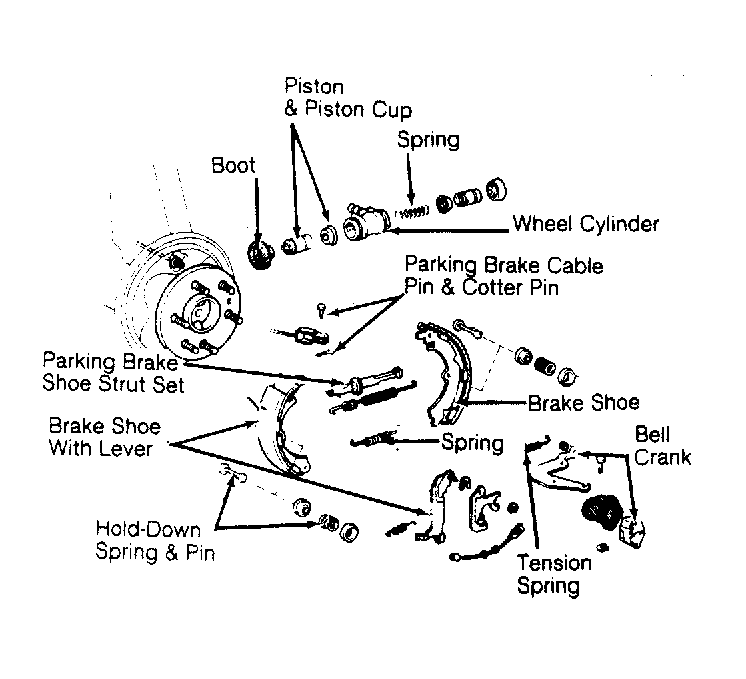

Fig 1: Exploded View of Land Cruiser Rear Brake

Fig 2: Exploded View of 4WD Pickup/4Runner Rear Brake
