Wiring Diagrams: Wiring Diagram

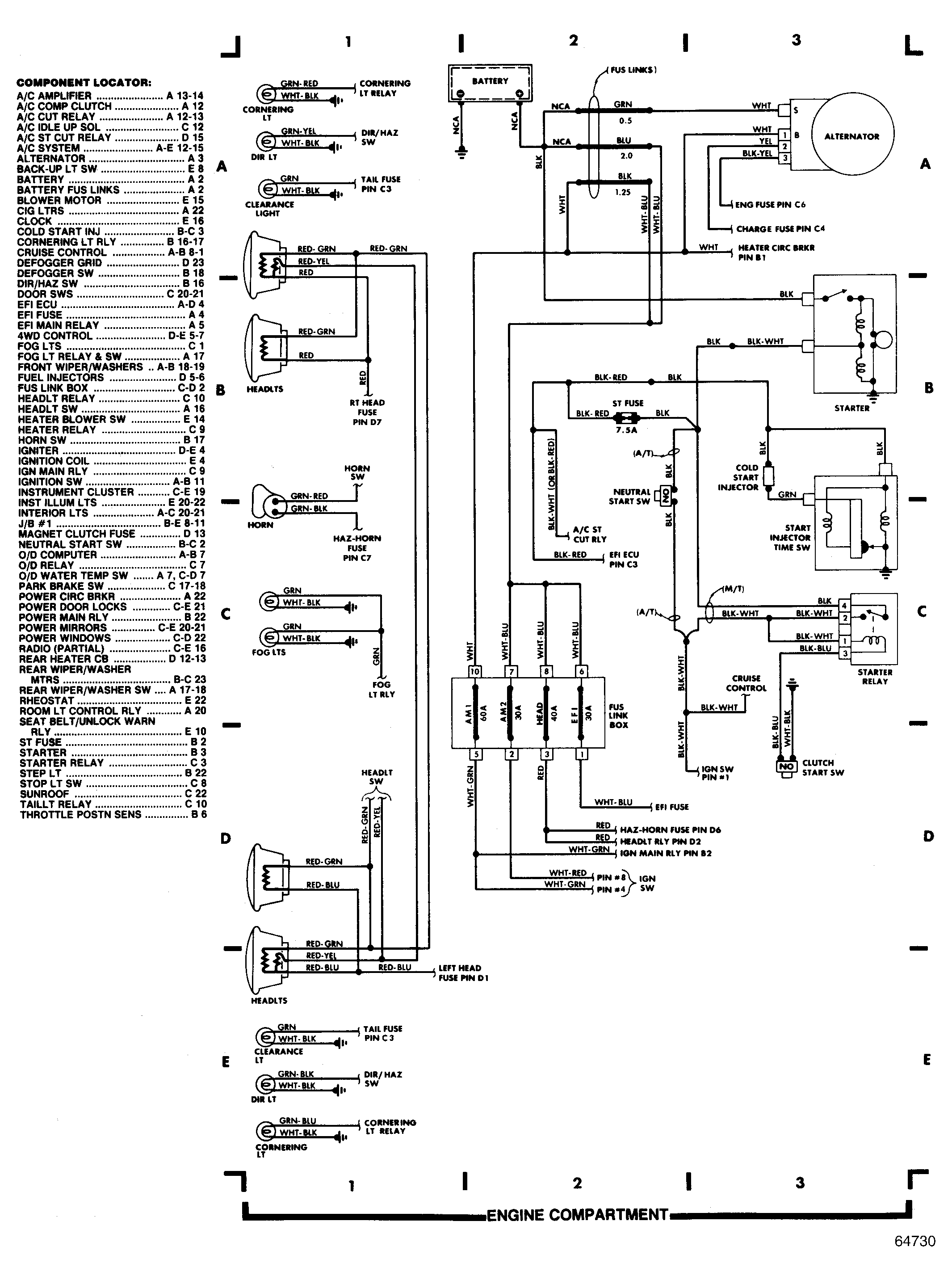

Fig 1: Engine Compartment (Grids 1-3)

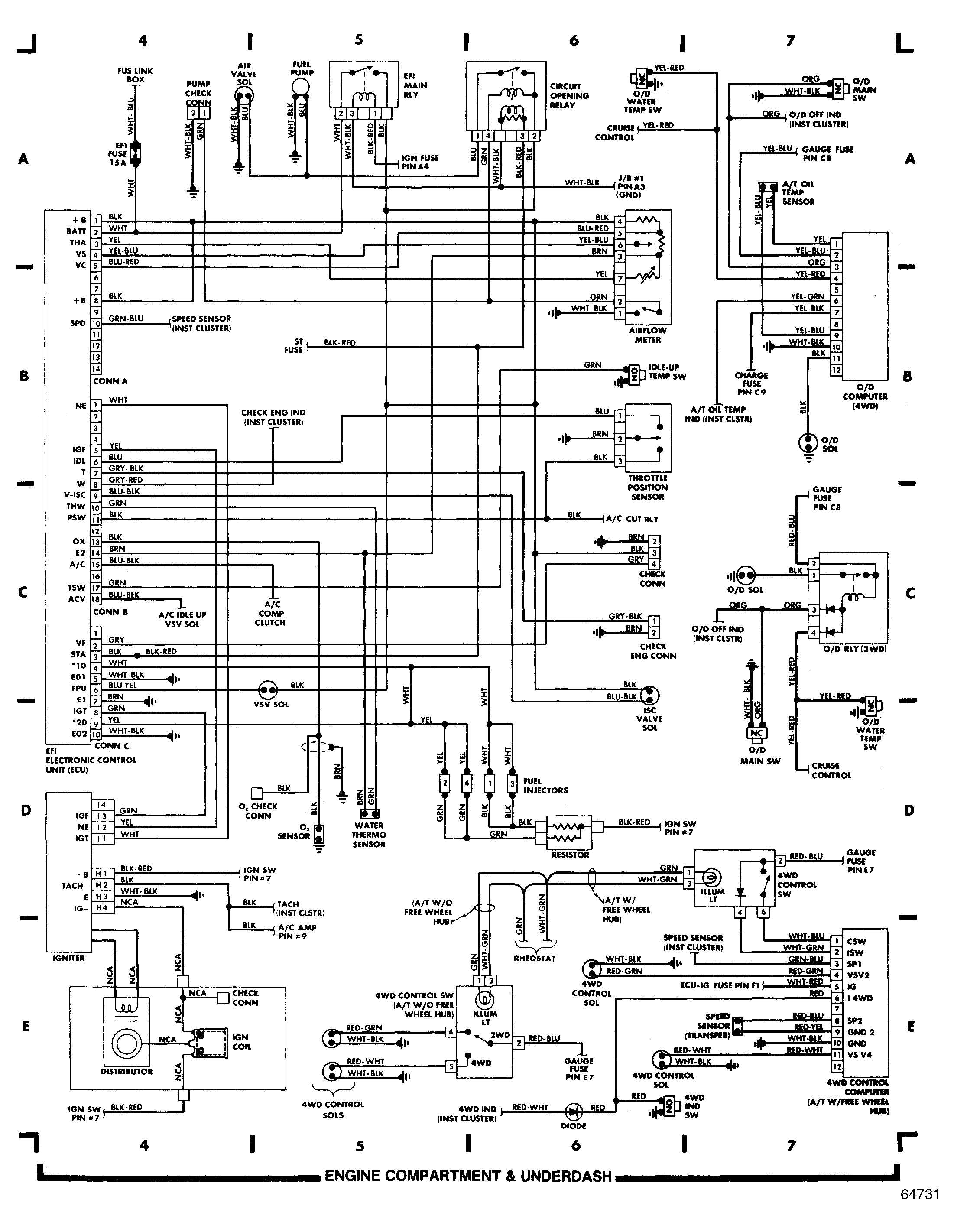

Fig 2: Engine Compartment (Cont.) & Underdash (Grids 4-7)

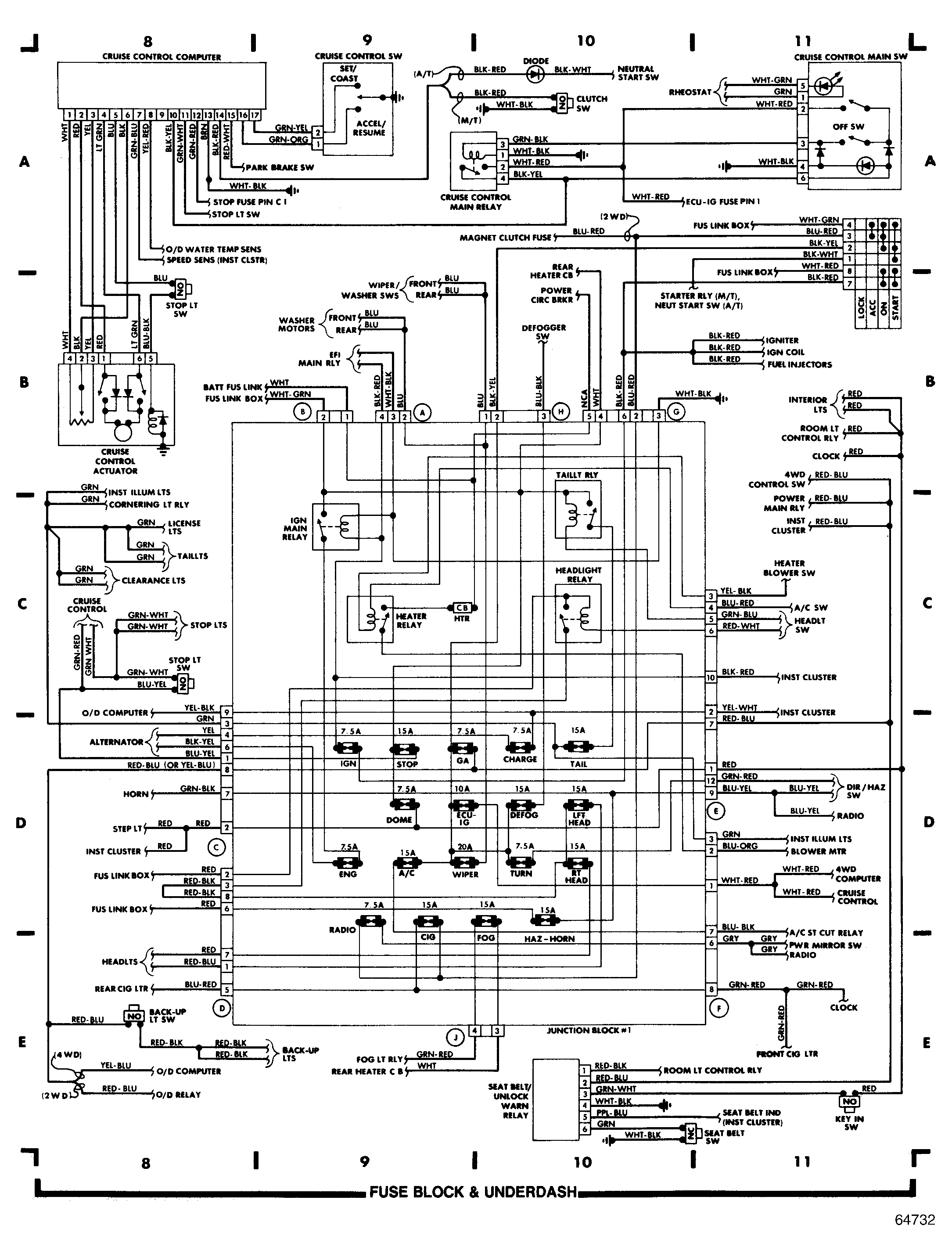

Fig 3: Underdash (Cont.) & Fuse Block (Grids 8-11)

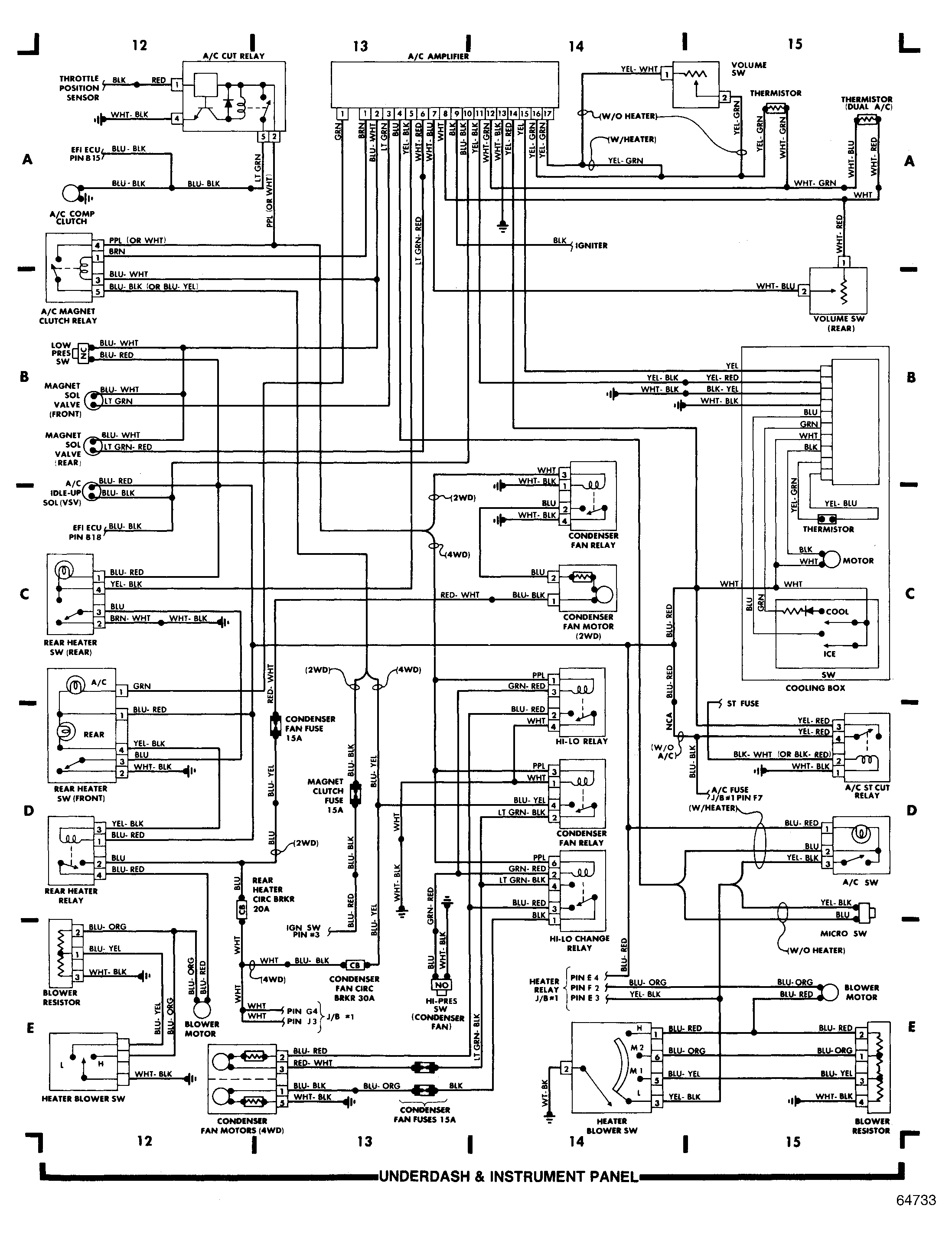

Fig 4: Underdash (Cont.) & Instrument Panel (Grids 12-15)

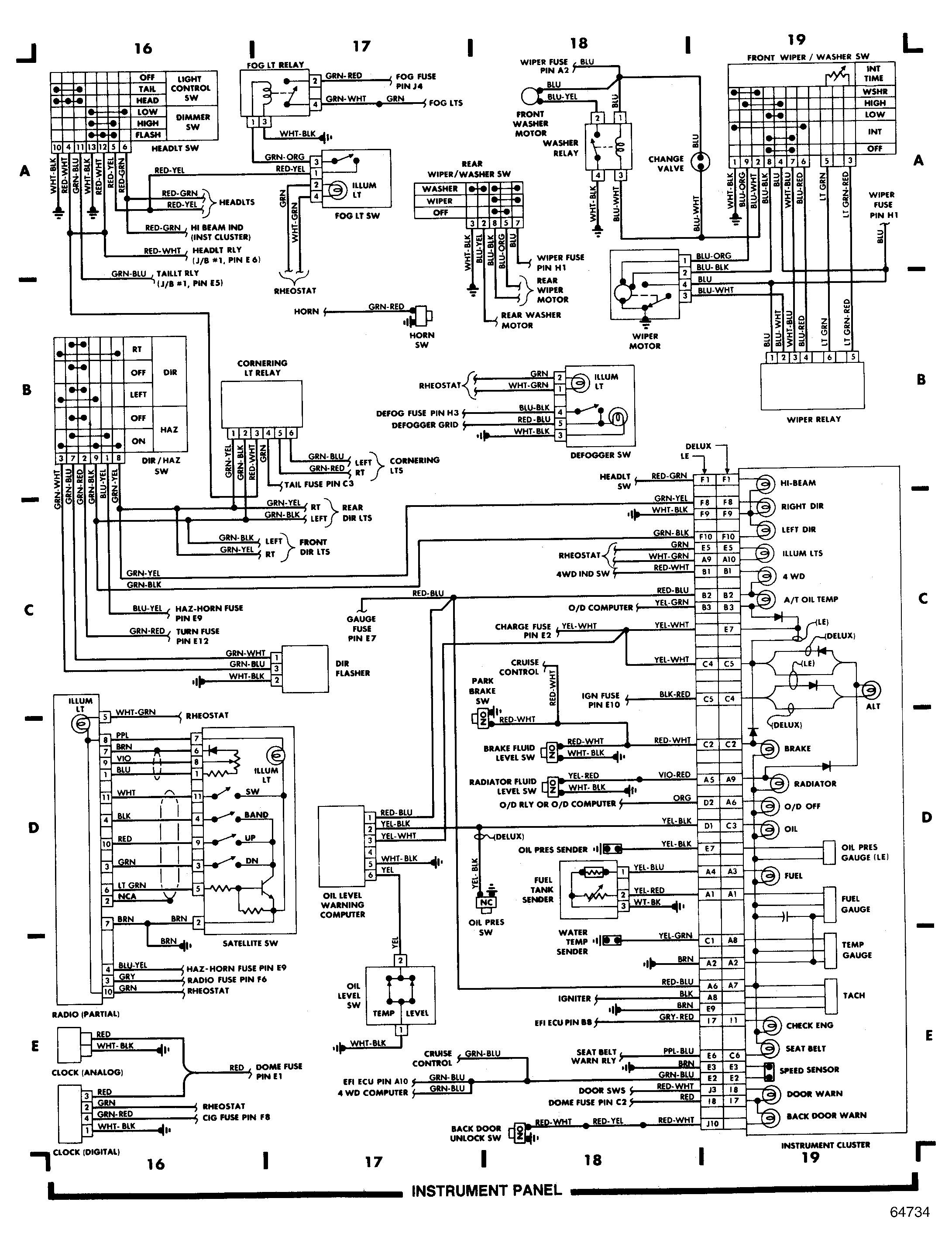

Fig 5: Instrument Panel (Cont.) (Grids 16-19)

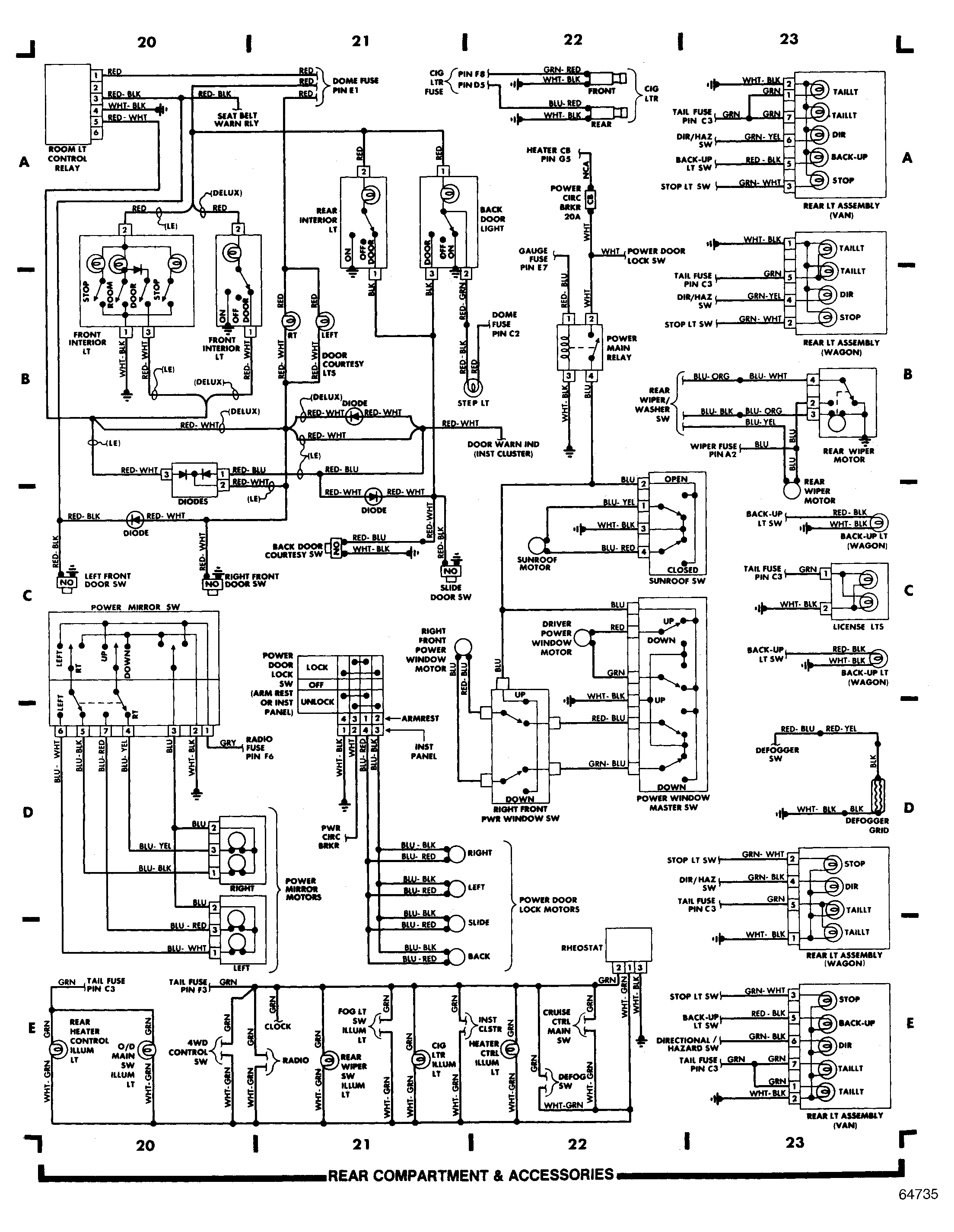

Fig 6: Rear Compartment & Accessories (Grids 20-23)
