Removal & Installation (Land Cruiser)

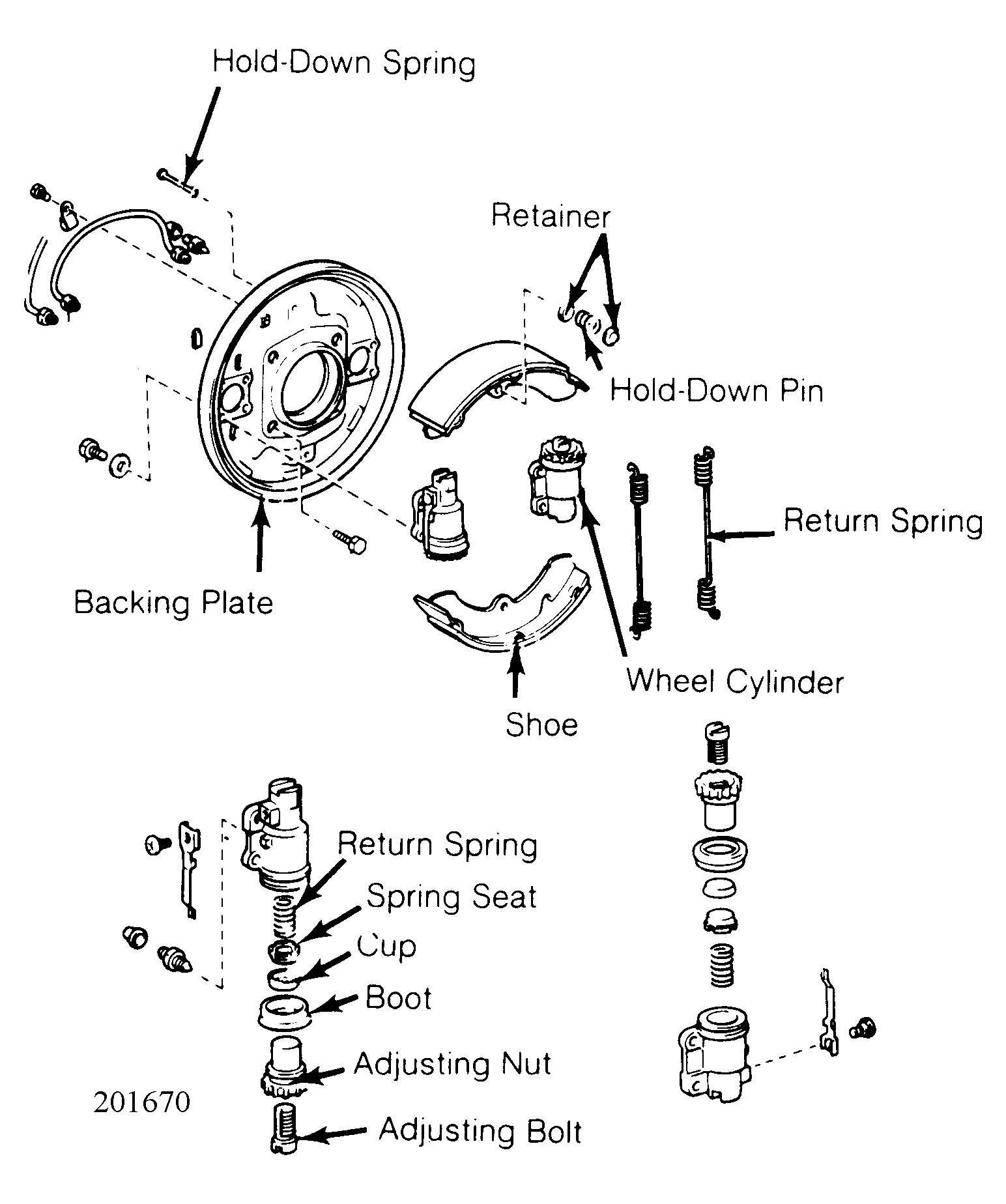

Remove drum. Remove front return spring. Remove hold-down springs. Remove brake shoes and rear return spring together. To install, reverse removal procedure. Apply brake grease to all brake shoe-to-backing plate contact points and adjuster. See Fig 1.
