Wheel Bearing

NOTE: To adjust axle shaft nut, axle hub MUST be removed from axle carrier.

Adjust bearing by tightening axle shaft nut to 90 ft. lbs. (123 N.m).
NOTE: When rotating hub, there should not be any brake drag.

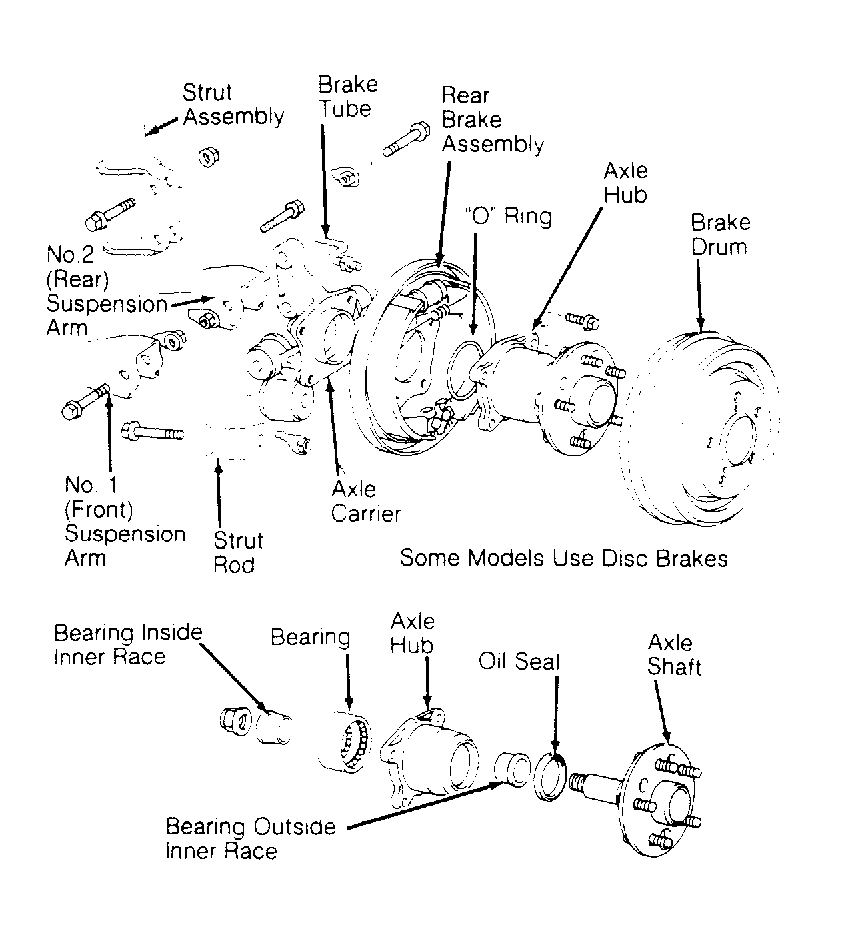

Fig 1: Camry and FWD Corolla Rear Axle Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
