Fuel Gauge Operation: Cressida
- Turn ignition on. Connect a jumper wire between terminals No. A-4 and A-10. All segments on fuel gauge should light up. Disconnect fuel tank sending unit connector. All segments should light up and fuel level warning light should flash.

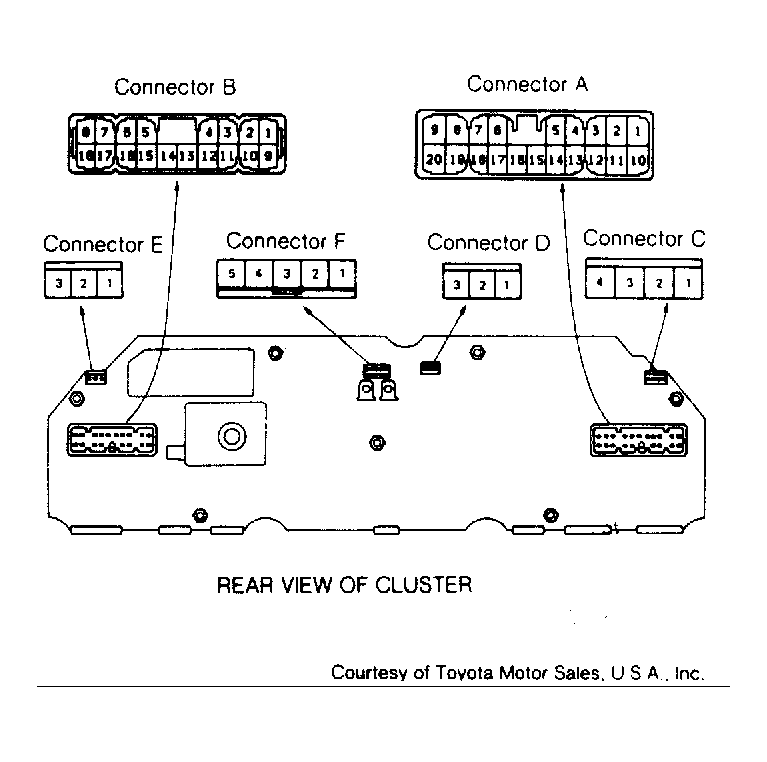

- If operation is not as described, check computer or wire harness. If okay, and fuel gauge still does not work, replace fuel gauge. See Fig 1.
