Suspension - Rear (RWD Except CRESSIDA Sedan): Description
NOTE:
Cressida sedans use an independent rear suspension. See appropriate article in this section.

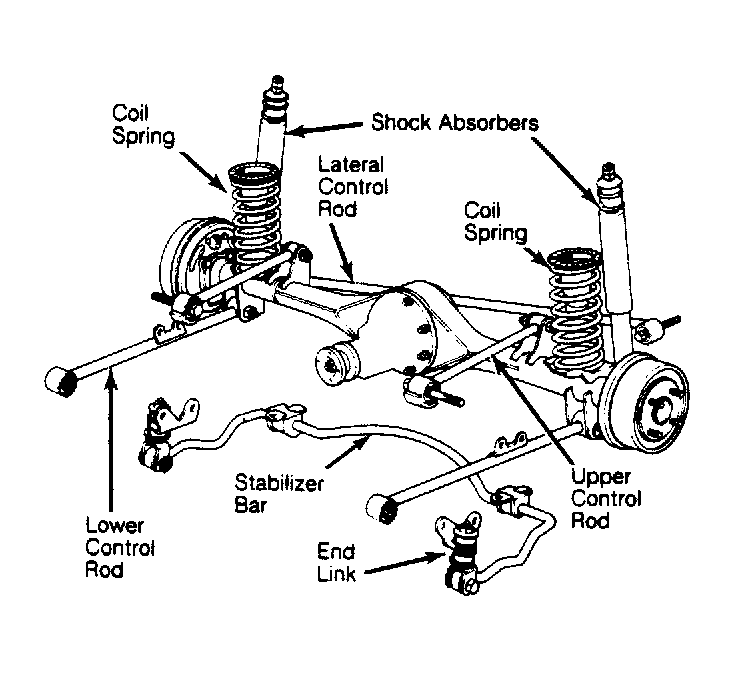

Coil spring type suspension is used, utilizing upper and lower control rods as pivot supports. Coil springs are mounted between axle and chassis member.
Shock absorbers are connected to axle housing and to chassis member. A lateral control rod is mounted to rear axle housing and to mount at side of body. A stabilizer bar attaches to chassis with end links and at axle with brackets.
