Axle Carrier & Hub: Installation

To install, reverse removal procedure. Ensure strut camber adjusting cam marks are aligned. Check wheel alignment.

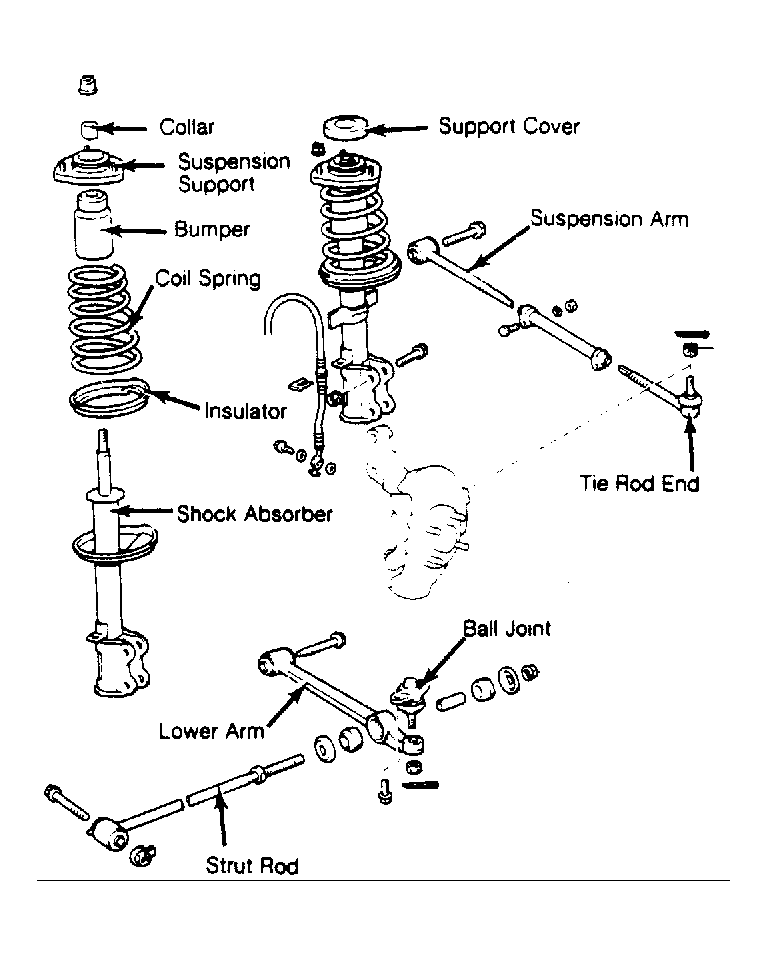

Fig 1: Exploded View of Rear Suspension Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
