Cylinder Head: Removal

Remove intake and exhaust manifolds. See Fig 1 or Fig 2 . Remove camshaft covers. Remove upper timing belt covers. Remove timing belt and camshaft sprockets. Support timing belt so that it remains meshed with crankshaft pulley.

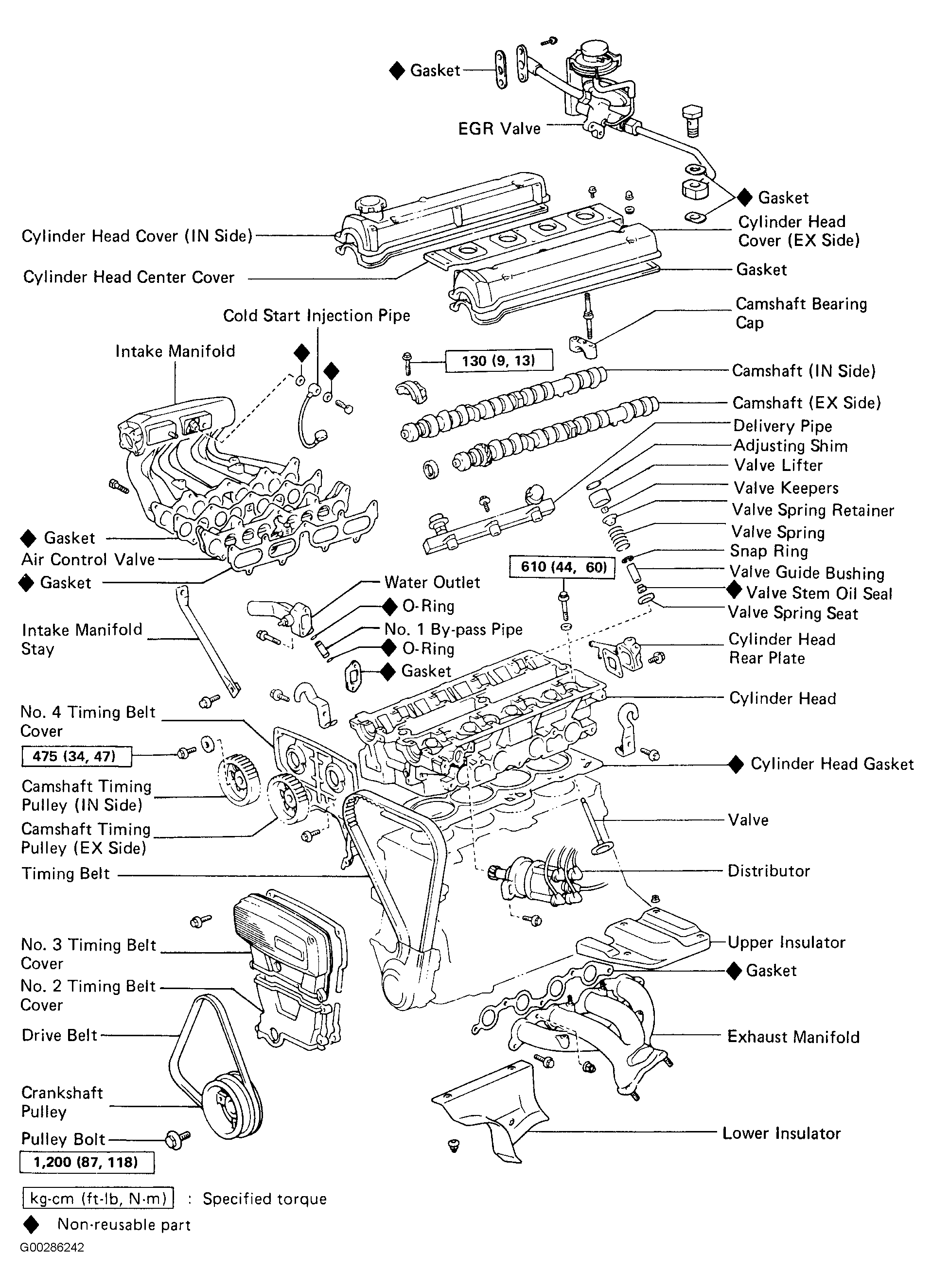

Fig 1: Exploded View Of Cylinder Head (Corolla GTS)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

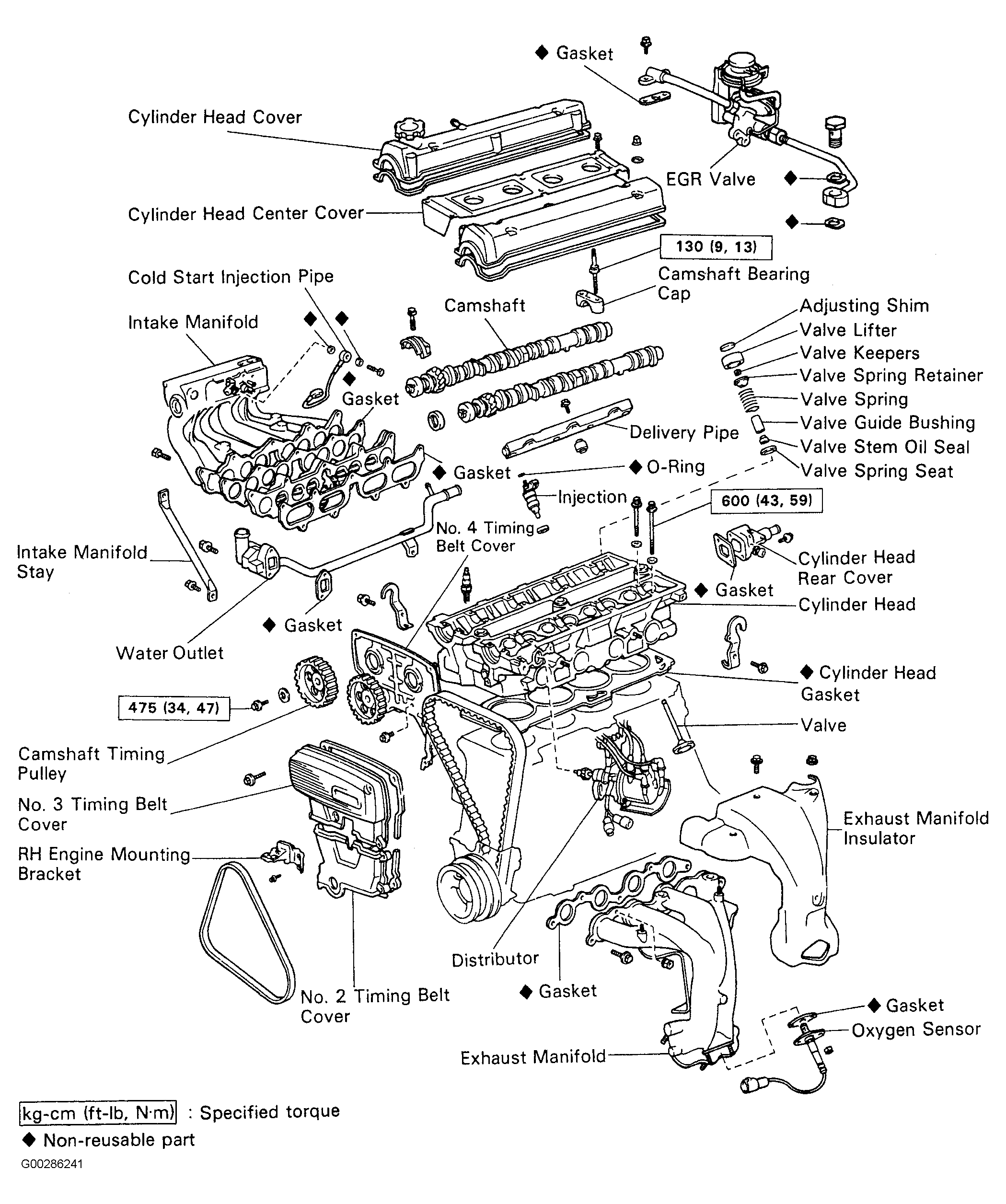

Fig 2: Exploded View Of Cylinder Head (MR-2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
To prevent head warpage or cracking, cylinder head bolts must be removed in correct order. Loosen cylinder head bolts in 3 stages in tightening sequence. See Fig 3. Lift head from dowels on block and set on wood blocks on work bench. If difficult to remove, pry with flat bar between cylinder head and block projection.

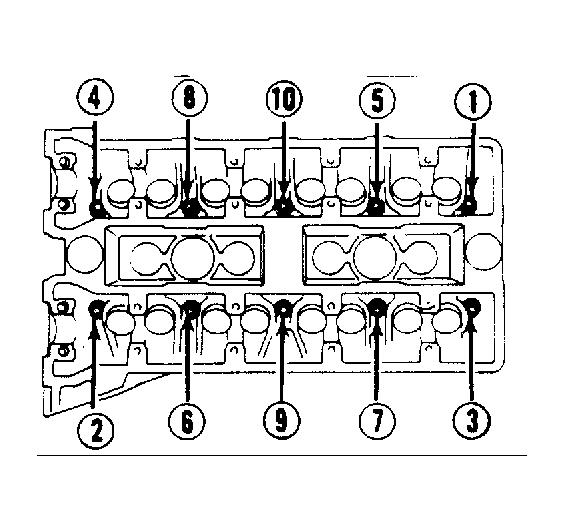

Fig 3: Cylinder Head Bolt Removal Sequence
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: DO NOT damage cylinder head or block surface during prying operation.
