Oil Pump: Inspection

  1. Check gears for wear or damage. Install new oil seal using Seal Installer (09517-30010). DO NOT  install seal slantwise.
  2. Measure clearances between drive gear and driven gear, side clearance, and gear-to-body clearance. If beyond limits, replace necessary parts. Check relief valve for wear or damage. See Fig 1.

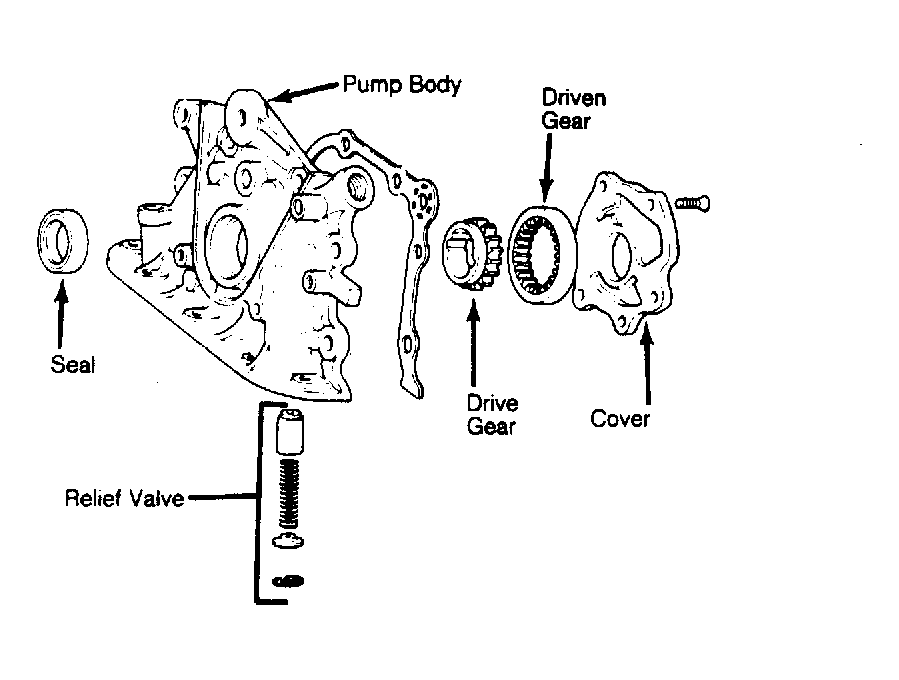

Fig 1: Exploded View Of Oil Pump Assembly
G81036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
