Intake & Exhaust Manifolds: Installation

Use new gaskets when installing intake and exhaust manifolds. See Fig 1 or Fig 2 . To install, reverse removal procedure.

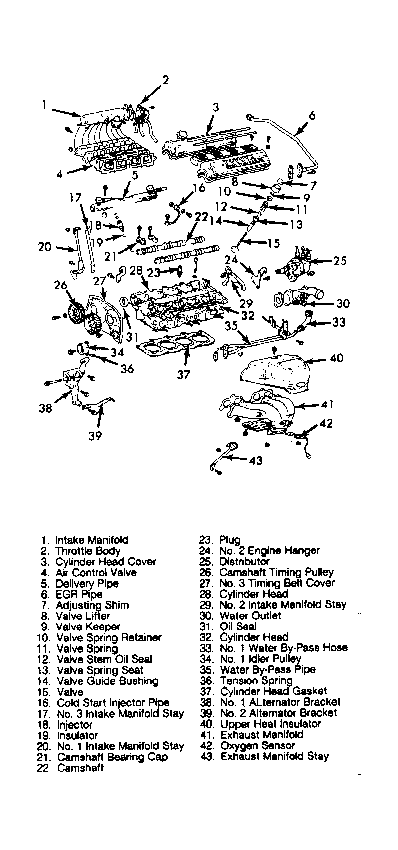

Fig 1: Exploded View of Camry & Celica Cylinder Head Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View of Celica GTS Cylinder Head Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
