Removal (Van)

  1. With brake drum removed, remove tension spring, hold-down springs, pins, brake shoes, adjuster spring and strut.
  2. Remove parking brake lever and adjusting lever as an assembly. Remove "C" washer, adjusting lever and parking brake lever from rear shoe.

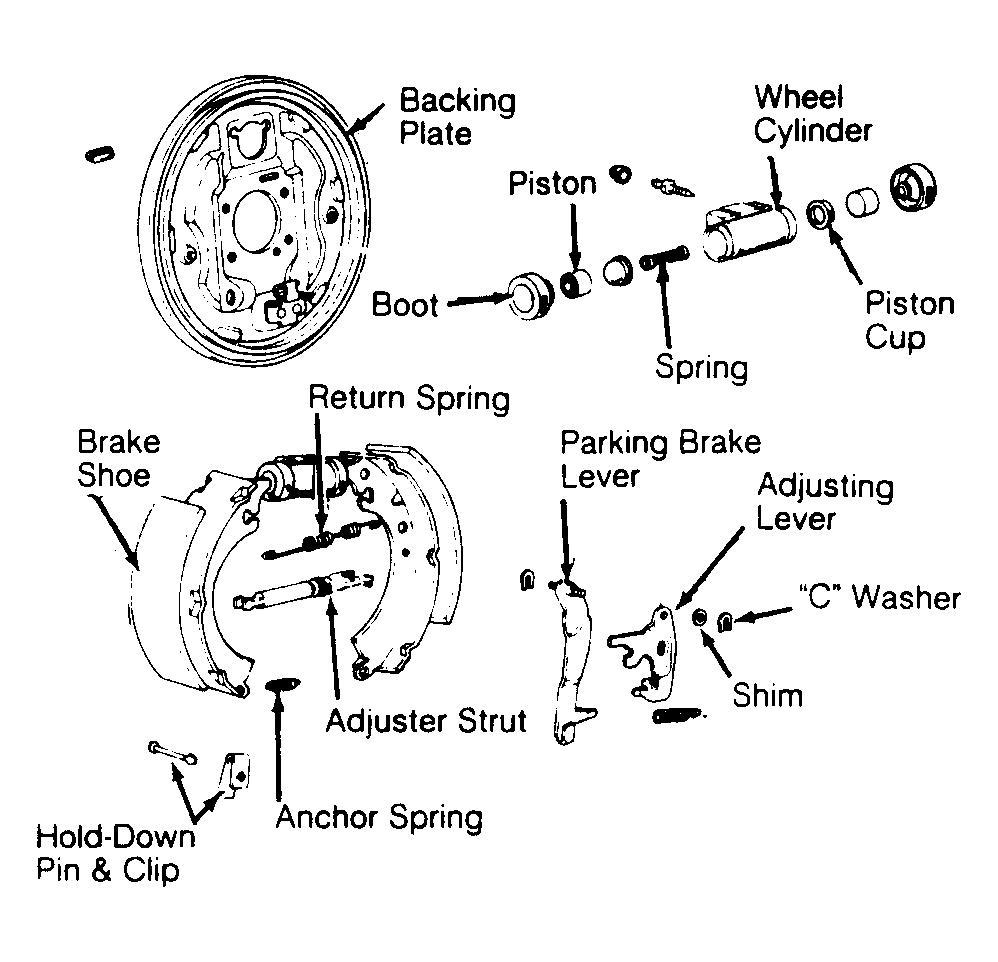

Fig 1: Exploded View of Rear Brake Used On Van When reassembling, install new "C" washers.
G50165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
