Pickup & 4RUNNER

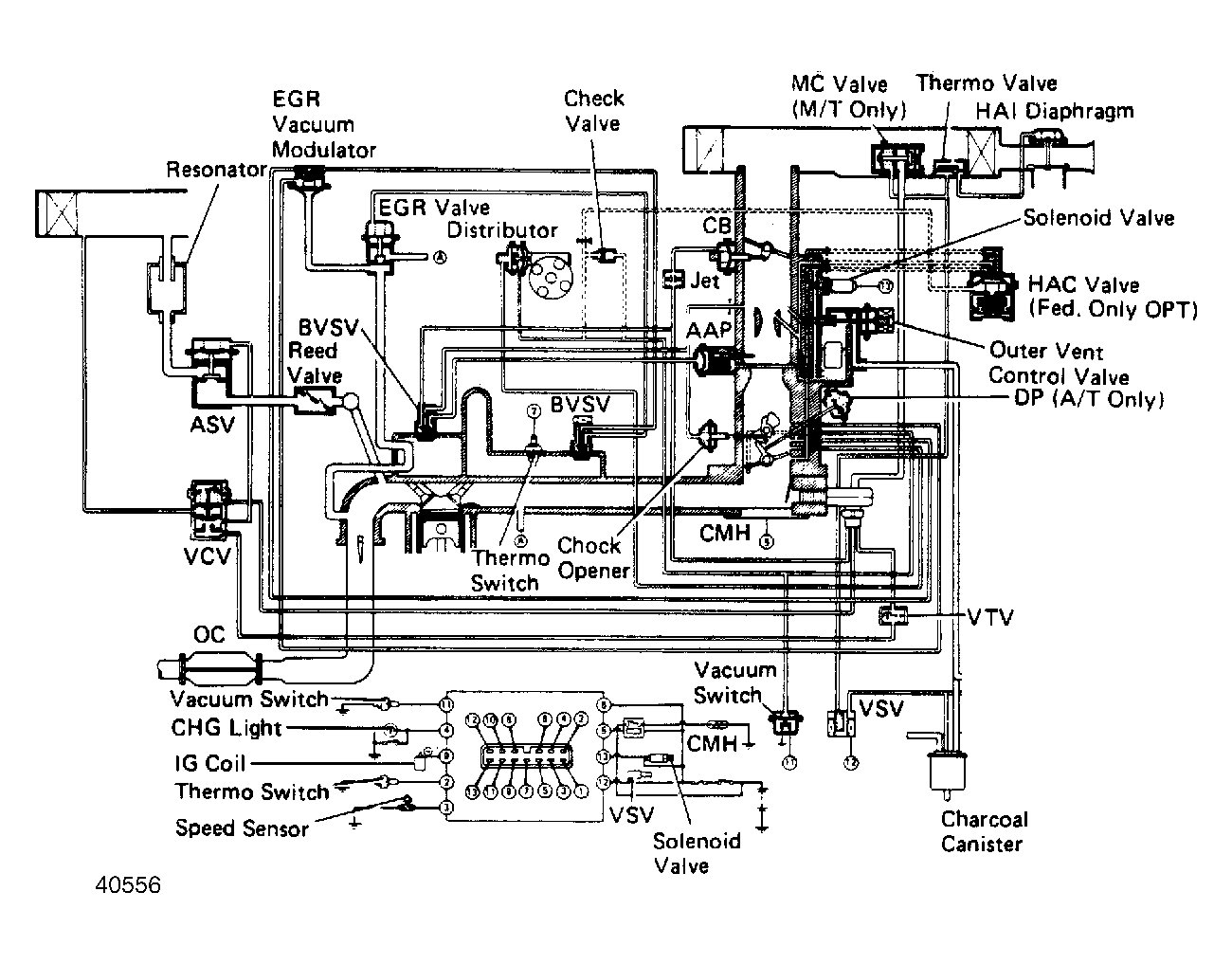

Fig 1: Vacuum Diagram (Pickup & 4Runner - Carbureted - Federal)
G40556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

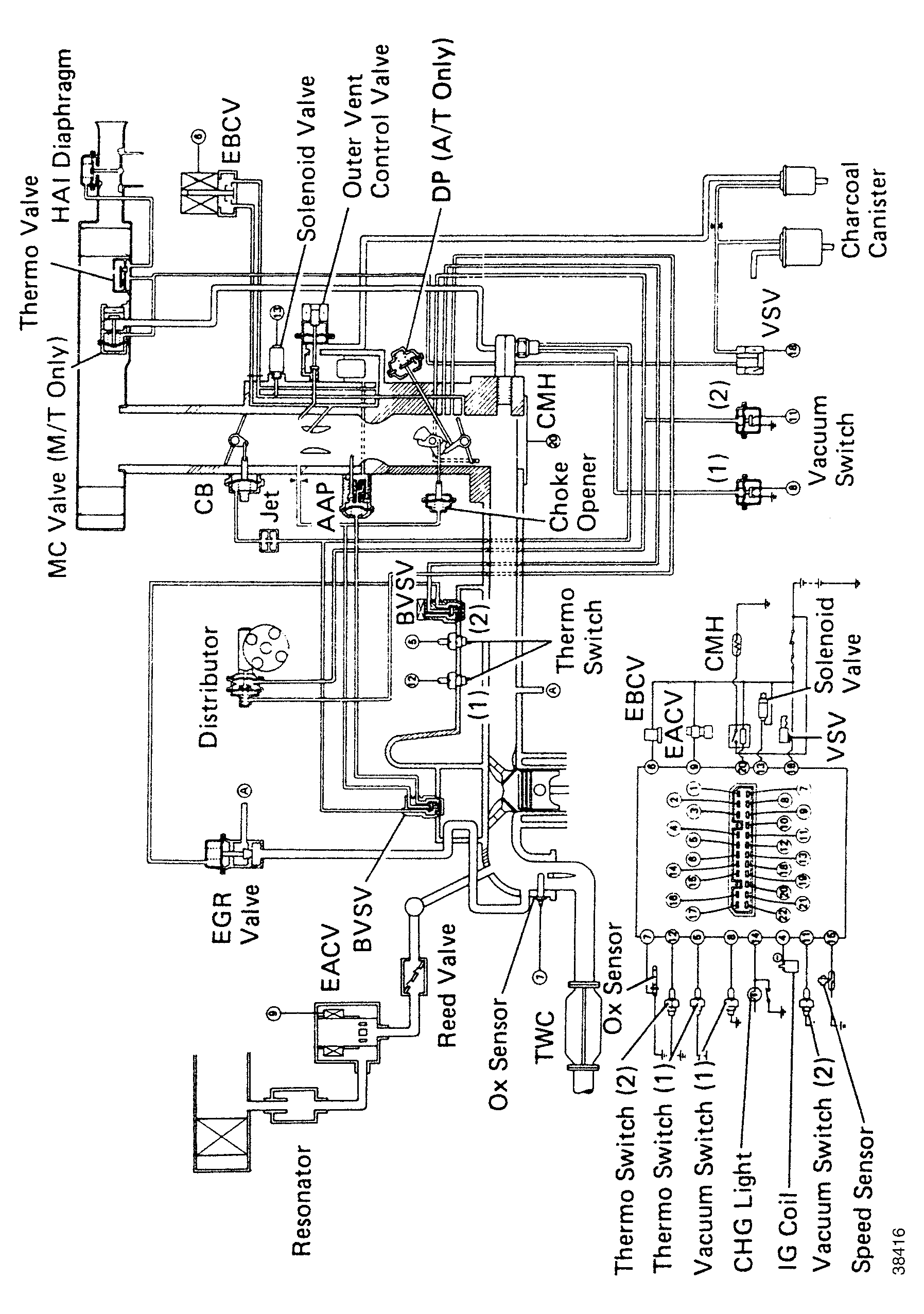

Fig 2: Vacuum Diagram (Pickup & 4Runner - Carbureted - California)
G38416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

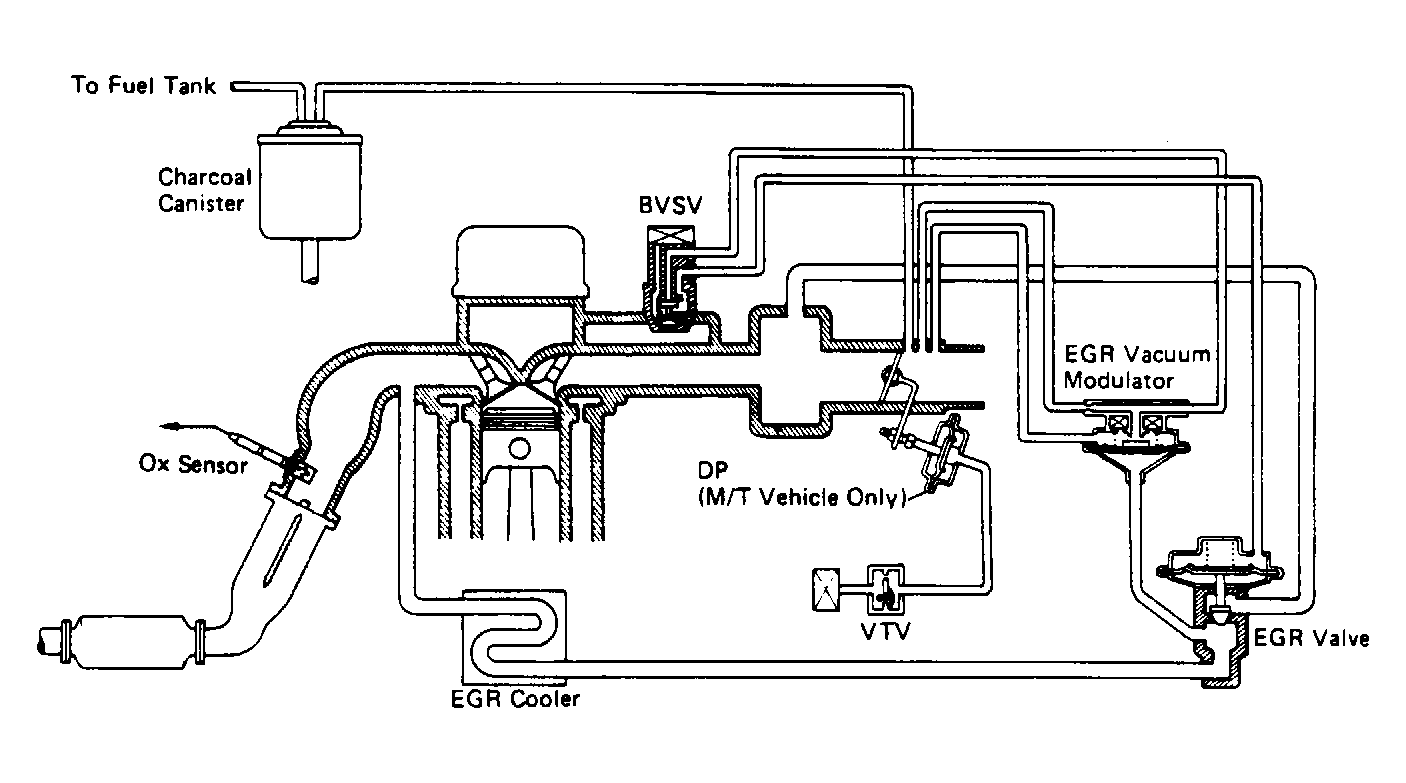

Fig 3: Vacuum Diagram (Pickup & 4Runner - EFI)
G38417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

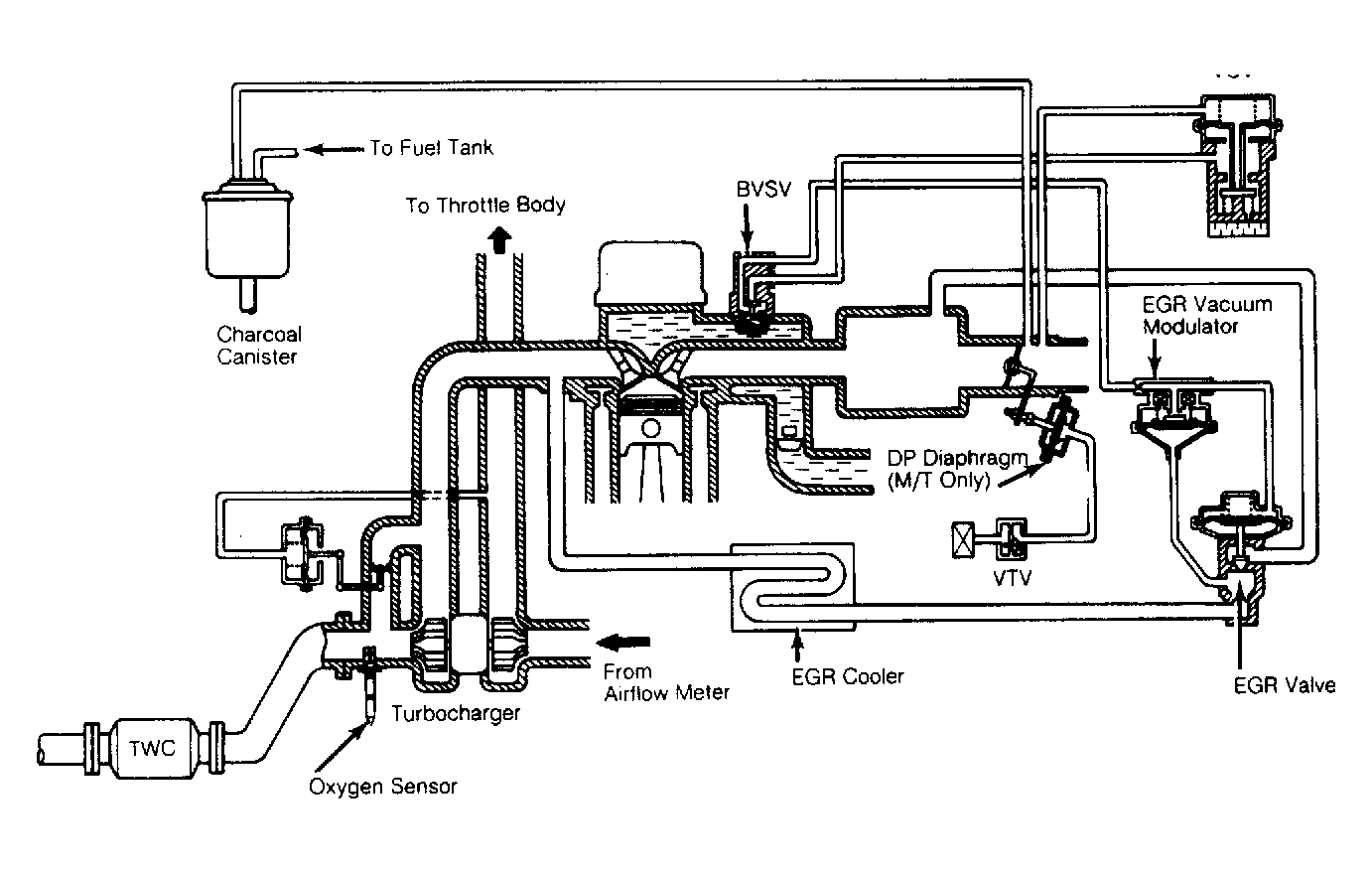

Fig 4: Vacuum Diagram (Pickup & 4Runner - Turbo EFI)
G67622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
