Removal (Pickup W/Dual Wheels & Land Cruiser)

1. Raise and support vehicle. Remove axle shafts. On models with semi-floating axles, use puller to remove axle bearing and oil seal together.
2. On models with full floating axles, remove lock screws from bearing adjusting nut. Remove adjusting nut with Spanner (09509-25011). Remove lock plate. Remove hub assembly with bearings. Remove oil seal and inner bearing. Replace bearings and seals if worn or damaged.

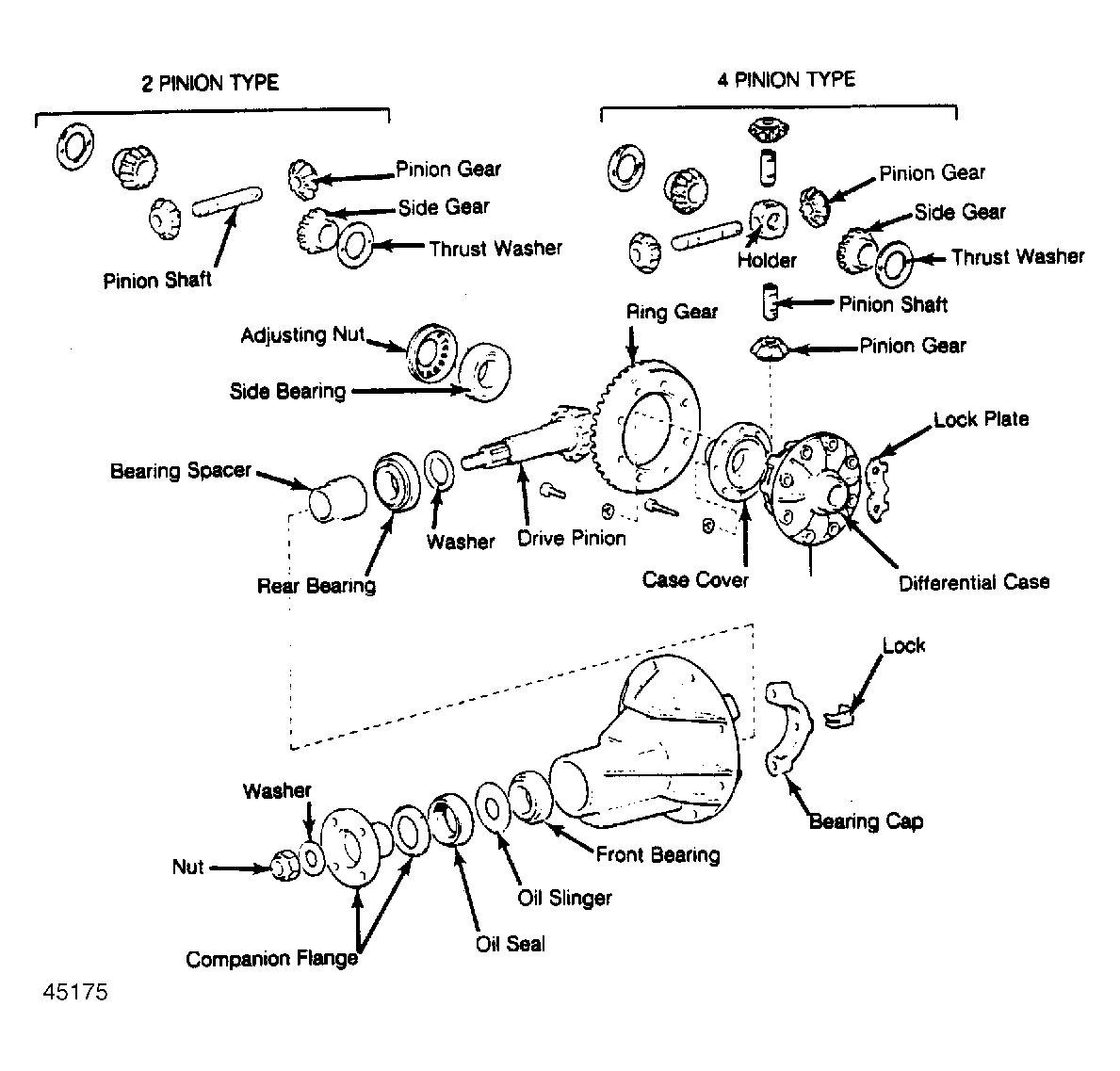

Fig 1: Exploded View of Conventional Rear Differential

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
