Installation (Pickup W/Single Wheel & 4Runner)

To install, reverse removal procedure. Install new "O" ring and fill differential with gear oil. Ensure bearing retainer is installed with flat unbeveled edge toward bearing.

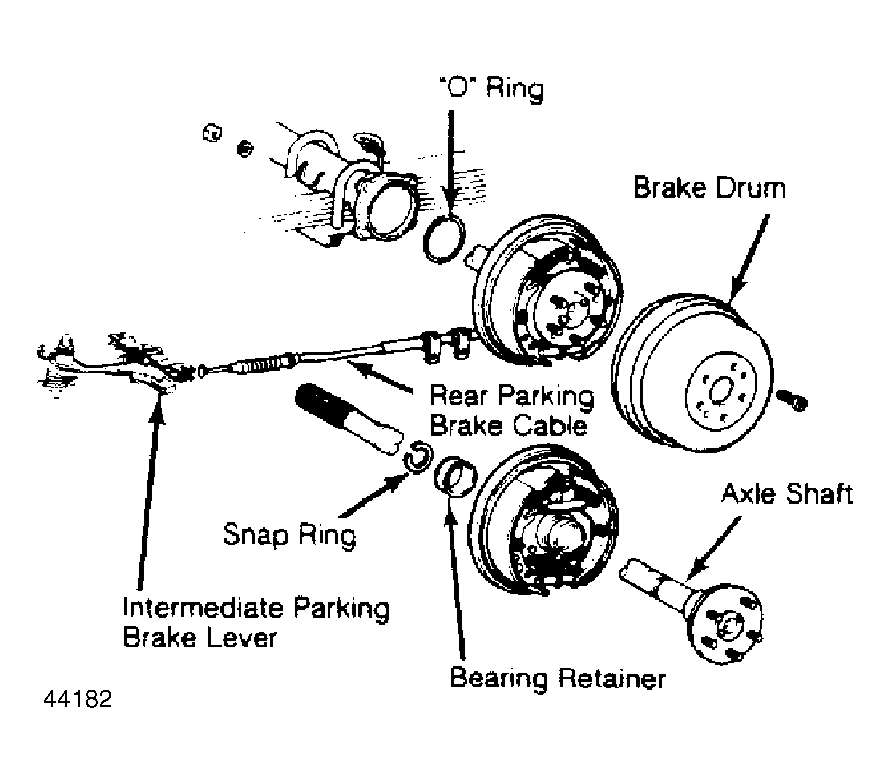

Fig 1: Exploded View of Pickup & 4Runner Rear Axle
