Timing Rotor (Reluctor)-to-Pick-Up Coil Air Gap

Using a flat feeler gauge, check air gap. Gap should be 0.008 - 0.016" (0.2 - 0.4 mm). If not, loosen screws and move pick-up coil against feeler gauge of proper thickness. Tighten screws and recheck air gap.

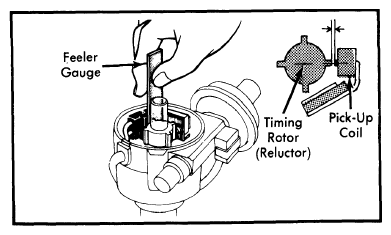

Fig 1: Checking Timing Rotor-to-Pick-Up Coil Air Gap Using Feeler Gauge

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
