Bimetal Vacuum Switching Valve (BVSV): Corolla

Drain coolant and remove BVSV. Cool in ice water to below 46° F (8° C). Plug top port and blow through other ports. Air should pass freely. Heat valve in water and check that air will not flow through (with top port plugged) when valve is above 66° F (19° C).

Fig 1: Testing Vacuum Transmitting Valve
G09314037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

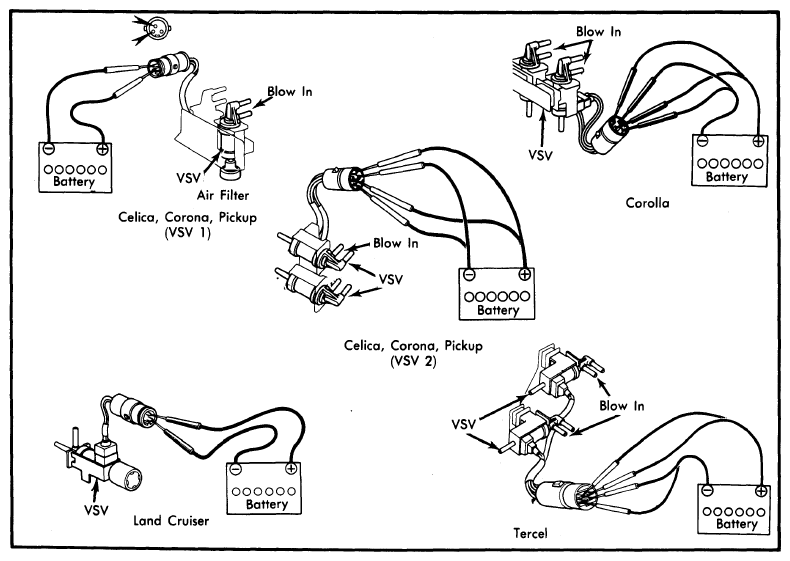

Fig 2: Vacuum Switching Valve Test Connections
G09314038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
