Front Axle Shafts & Bearings (Land Cruiser & 4-Wd Pickup): Notes

NOTE: On vehicles equipped with locking hubs, refer to Locking Hubs article in this Section to remove hub, then proceed with removal procedures. Ensure locking knob is set to "FREE" position before removal.

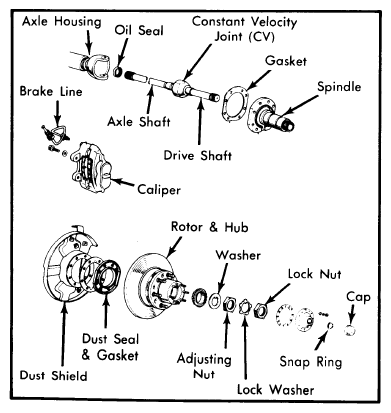

Fig 1: Exploded View of Front Axle Shaft Assembly (4-WD Pickup and Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
