Removal & Installation: Installation

Install steering column in vehicle and tighten column bracket bolts finger tight. Install column hole cover bolts, then tighten column bracket bolts.
Make sure alignment marks are aligned on universal joints then tighten clamp bolts. Install turn signal or combination switch. Install bracket covers, dash panels and pads. Install air ducts (if equipped).
Install steering wheel and steering wheel pad. Make sure alignment marks on steering shaft and steering wheel are aligned.

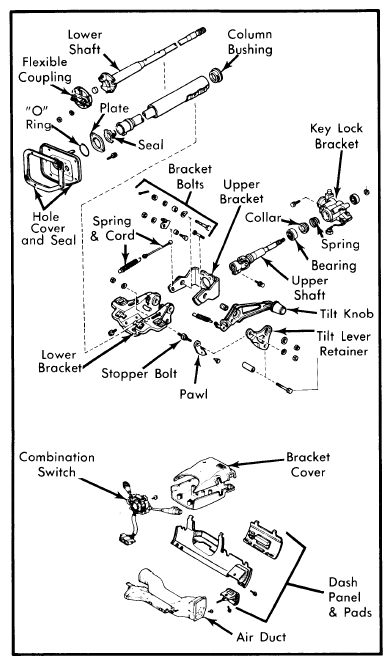

Fig 1: Exploded View of Passenger Car Tilt Steering Column
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

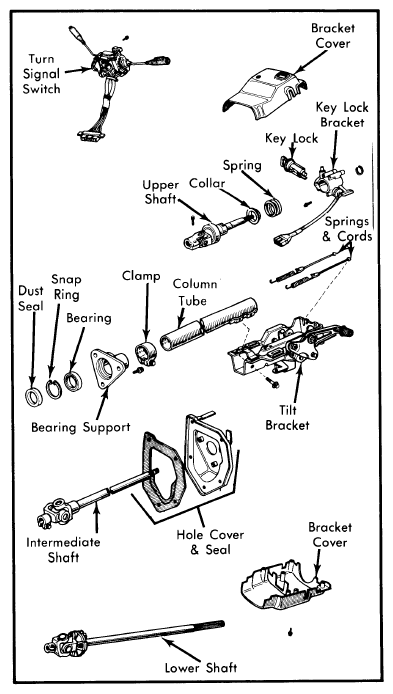

Fig 2: Exploded View of Pickup Tilt Wheel Steering Column
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
