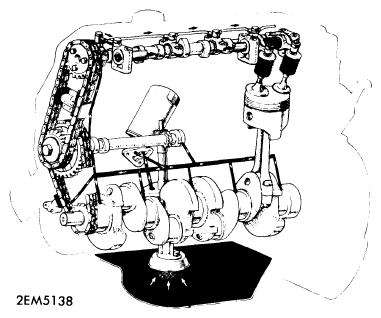

Engine Oiling System
Forced feed oiling system utilizing a rotor-lobe type oil pump driven by distributor shaft. Oil from oil pan is pumped through a full flow oil filter and then to oil galleries in cylinder block. Oil is fed to crankshaft main bearings, timing chain assembly, and oil pump drive shaft. It is then channeled to camshaft and rocker arm assembly.
