Valve Spring: Installation

Install a new oil seal on valve stem and reverse removal procedure to install.

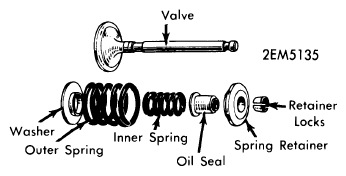

Fig 1: Valve Assembly
G09326248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

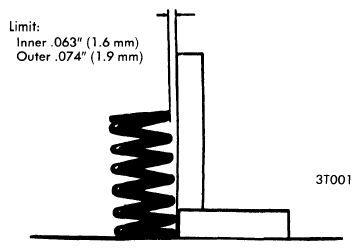

Fig 2: Valve Spring Squareness Limit
G09326249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
