Cylinder Head: Installation
CAUTION:
Do not slide cylinder head on block as locating dowels may cause damage to gasket surface.

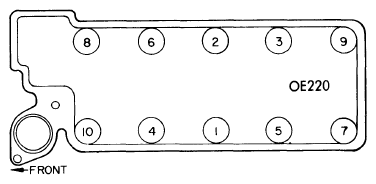

Install cylinder head and new gasket and tighten cylinder head bolts in sequence, taking two or three steps. Reverse removal procedure for remaining components. See CAMSHAFT .
VALVES
| Engine & Valve | Head Diam. In. (mm) | Face Angle | Seat Angle | Seat Width In. (mm) | Stem Diameter In. (mm) | Stem Clearance In. (mm) | Valve Lift In. (mm) | |
|---|---|---|---|---|---|---|---|---|
| 1969-71 8R-C | ||||||||
| Int. | 1.687-1.699 | 45° | 45° | .05-.06 | .3140-.3144 | .0010-.0022 | ...... | |
| (42.84-43.15) | (1.2-1.6) | (7.975-7.985) | (.0254-.0058) | ...... | ||||
| Exh. | 1.333-1.345 | 45° | 45° | .05-.06 | .3132-.3140 | .0014-.0030 | ...... | |
| (33.85-34.16) | (1.2-1.6) | (7.955-7.976) | (.0356-.0762) | ...... | ||||
| 1972-73 18R-C | ||||||||
| Int. | 1.608-1.620 | 45° | 45° | .05-.06 | .3140-.3144 | .0010-.0022 | ...... | |
| (40.84-41.15) | (1.2-1.6) | (7.975-7.985) | (.0254-.0058) | ...... | ||||
| 1.411-1.423 | 45° | 45° | .05-.06 | .3132-.3144 | .0014-.0030 | ...... | ||
| Exh. | (35.84-36.14) | (1.2-1.6) | (7.955-7.976) | (.0356-.0762) | ...... | |||
