Valve Arrangement

Left side are all intake. Right side are all exhaust.

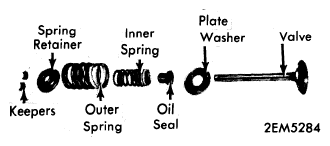

Fig 1: Valve Components

G09326262

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
