Timing Chain: Removal
Remove valve cover and rocker arm assembly. Remove timing chain tensioner. Straighten lock plate and remove camshaft timing gear bolt and gear.
NOTE:
Bolt is left-hand thread.

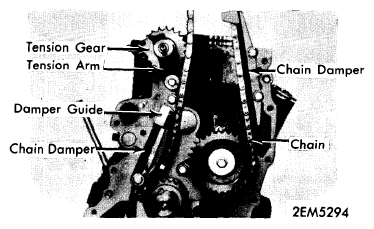

Remove crankshaft pulley bolt and remove pulley and damper using a suitable puller (09213-41013). Remove camshaft, cylinder head, oil pan and front engine cover. Remove timing chain vibration dampers, damper guide, crankshaft oil slinger and timing chain.
