Piston Pins: Installation

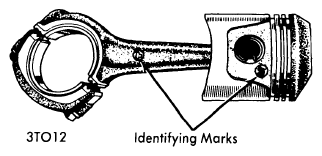

Install one circlip in piston and heat piston to 122-140°F (50-60°C). Position piston on rod so that identifying mark on side of rod and on side of piston are facing in same direction. Lubricate and install piston pin. Install remaining circlip. Position circlips with open end down.
CRANKSHAFT MAIN & CONNECTING ROD BEARINGS
| MAIN BEARINGS | CONNECTING ROD BEARINGS | ||||||
|---|---|---|---|---|---|---|---|
| Engine | Journal Diam. In. (mm) | Clearance In. (mm) | Thrust Bearing | Crankshaft End Play In. (mm) | Journal Diam. In. (mm) | Clearance In. (mm) | Side Play In. (mm) |
| 1965-67 | |||||||
| M | 2.3616-2.3622 (59.98-60.00) | 001-.003 (.02-.07) | Center | 002-.010 (.05-.25) | 2.0466-2.0472 (51.98-52.00) | 001-.003 (.02-.07) | 0043-.0097 (.11-.25) |
| 1968-71 | |||||||
| 2M | 2.3616-2.3622 (59.98-60.00) | 0007-.0017 (.018-.042) | Center | 002-.010 (.05-.25) | 2.0463-2.0472 (51.98-52.00) | 0006-.0020 (.015-.049) | 004-.010 (.11-.25) |
| 1972-73 | |||||||
| 4M | 2.3617-2.3672 (59.98-60.00) | 0012-.0021 (.030-.054) | Center | 002-.010 (.05-.25) | 2.0463-2.0472 (51.98-52.00) | 0008-.0021 (.021-.053) | 006-.012 (.16-.30) |
