Engine Oiling System

System is force feed with full flow filtering system. Pressure is delivered by a trochoid type oil pump on M and early 2M models. On later 2M models and all 4M models a gear type oil pump is used. Oil pumped is fully filtered by oil filter and then travels through oil passages within cylinder block to lubricate engine internal components.

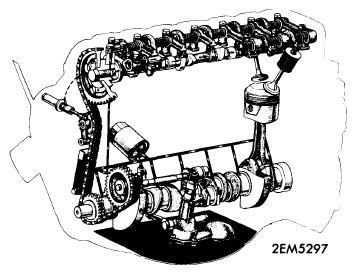

Fig 1: Engine Oiling
G09326278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
