Engine Front Cover Oil Seal

Inspect oil seal lip and replace if worn or damaged. Pry old seal out without damaging cover or retainer. Install seal using suitable oil seal replacer (Tool 09223-50010). After installing, lightly apply multipurpose lubricant to lip of seal.

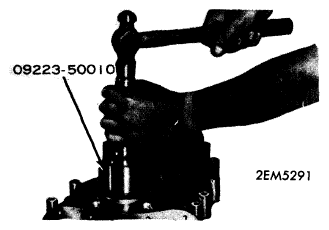

Fig 1: Front Cover Oil Seal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CAMSHAFT

Engine

Journal Diam. In. (mm)

Clearance In. (mm)

Lobe Lift In. (mm)

1965-73

All

1.3371-1.3378 (34.98-35.00)

.0005-.0025 (.012-.064)

⁽¹⁾

⁽¹⁾	See CAM LOBE LIFT .
