Cylinder Head: Installation

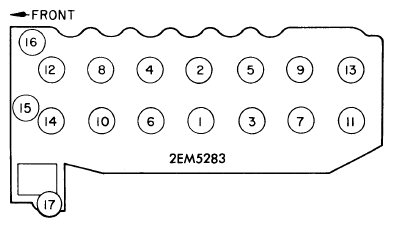

Install cylinder head and new gasket and tighten cylinder head bolts in sequence taking two or three steps. Reverse removal procedure for remaining components. See CAMSHAFT INSTALLATION .
VALVES
| Engine & Valve | Head Diam. In. (mm) | Face Angle | Seat Angle | Seat Width In. (mm) | Stem Diameter In. (mm) | Stem Clearance In. (mm) | Valve Lift In. (mm) | |
|---|---|---|---|---|---|---|---|---|
| 1965-67 | ||||||||
| M | ||||||||
| Int. | 1.575 | 45° | 45° | .055 | .3140-.3143 | .001-.002 | ..... | |
| (40) | (1.4) | (7.975-7.985) | (.02-.05) | ..... | ||||
| Exh. | 1.379 | 45° | 45° | .055 | .310-.3140 | .001-.002 | ..... | |
| (34) | (1.4) | (7.960-7.975) | (.02-.05) | ..... | ||||
| 1968-71 | ||||||||
| 2M | ||||||||
| Int. | 1.575 | 45° | 45° | .055 | .3537-.3541 | .002 | ..... | |
| (40) | (1.4) | (8.985-8.995) | (.06) | ..... | ||||
| Exh. | 1.339 | 45° | 45° | .055 | .3138-.3144 | .003 | ..... | |
| (34) | (1.4) | (7.970-7.985) | (.07) | ..... | ||||
| 1972-73 | ||||||||
| 4M | ||||||||
| Int. | 1.575 | 45° | 45° | .055 | .3144-.3148 | .006-.0018 | ..... | |
| (40) | (1.4) | (7.985-7.995) | (.015-.045) | ..... | ||||
| Exh. | 1.339 | 45° | 45° | .055 | .3138-.3144 | .0010-.0024 | ..... | |
| (34) | (1.4) | (7.970-7.985) | (.025-.060) | ..... | ||||
