Crankshaft Timing Gear Replacement

To remove crankshaft timing gear, remove timing chain and using suitable puller (Tool 09950-00010) pull gear from crankshaft. To install, use suitable installation tool (Oil Seal Replacer Tool 09214-41010) to drive gear onto crankshaft.

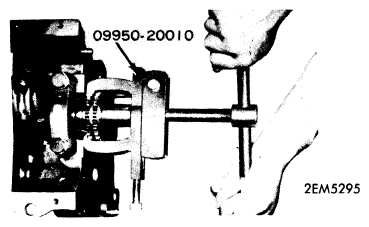

Fig 1: Removing Crankshaft Timing Gear
G09326275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
