Camshaft End Thrust

To measure end thrust, use feeler gauge with camshaft installed on cylinder head. If end thrust exceeds 0.012", replace cam bearing No. 2. Specified end thrust should be 0.0022 - 0.0061".

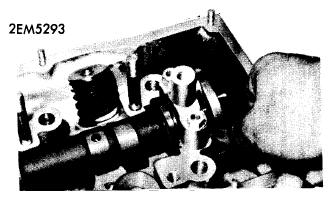

Fig 1: Camshaft End Play
