Valve Guide Servicing

  1. With cylinder head removed and disassembled, check clearance between valve stem and valve guide. If clearance exceeds 0.004", replace valve and valve guide.

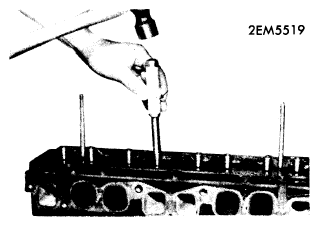

    Fig 1: Valve Guide Replacement
    G09326235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. To replace valve guide, drive out of cylinder head using a suitable driver (09201-40010). Drive guide into head using same driver, until guide protrudes 0.96" from top of head. Ream guide to correct clearance.
