Idle Speed & Mixture

Alternately turn idle speed and mixture screws to obtain highest vacuum reading (18 - 21"). Idle speed should be 550 RPM (Auto Trans in "D").

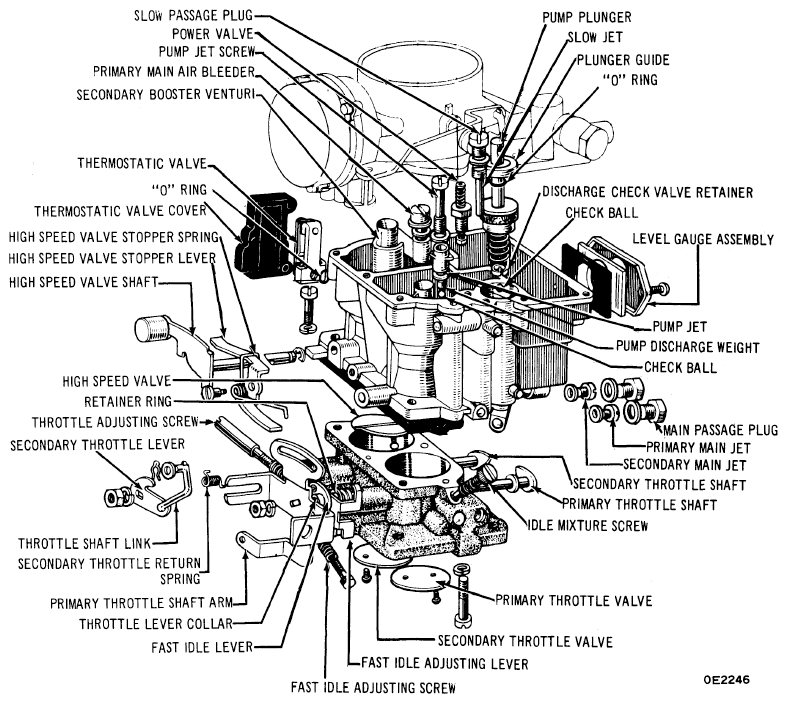

Fig 1: Carburetor Components
G09309750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
