Cover - Back Rest - Driver - Remove And Replace: Install

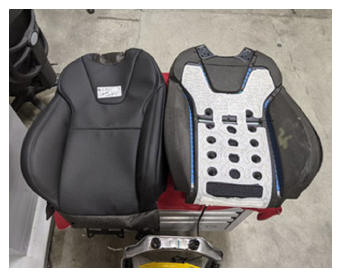

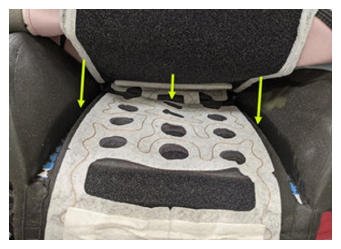

  1. Position the driver seat back rest trim onto the driver seat back rest foam, and then align the Velcro strips (x4).
    G15082890Courtesy of TESLA, INC.
    G15082891Courtesy of TESLA, INC.
    G15082893Courtesy of TESLA, INC.

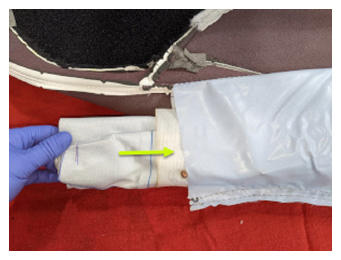

  2. Carefully install the airbag into the airbag chute.
    CAUTION: Make sure that the driver side airbag mounting studs extend out of the holes of the chute.
    CAUTION: Handle the airbag with extreme care when installing it into the airbag chute. The airbag is configured/folded in a specific manner and will need to be replaced if it is dropped, altered or manipulated in any way.
    NOTE: Refer to the following video for proper care when installing the driver side airbag into the airbag chute, and when installing the chute through the seat foam.
    multimedia:A supplement to the article is available.
    G15082894Courtesy of TESLA, INC.
    G15082895Courtesy of TESLA, INC.

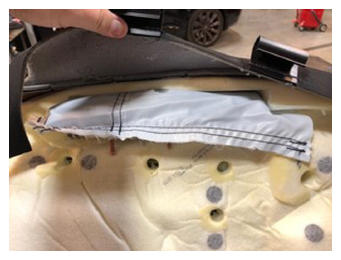

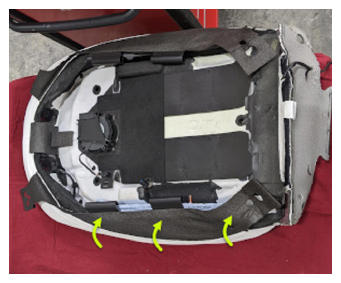

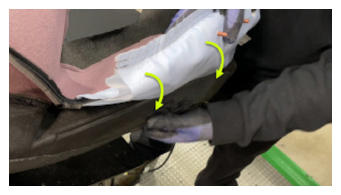

  3. Carefully position the air bag chute into the LH side of the seat back foam, and then fold the seat back trim over the LH side bolster.
    G15082896Courtesy of TESLA, INC.
    G15082897Courtesy of TESLA, INC.
  4. With assistance, maneuver the driver seat back trim assembly downward onto the seat frame to install it onto the seat assembly.
    G15082898Courtesy of TESLA, INC.

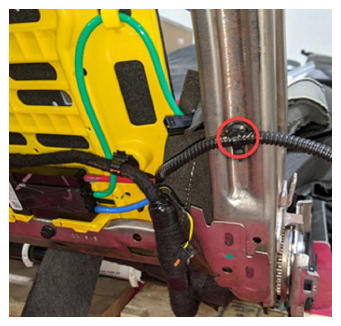

  5. Install the clip that attaches the driver seat harness to the RH side of seat back frame.
    G15082899Courtesy of TESLA, INC.

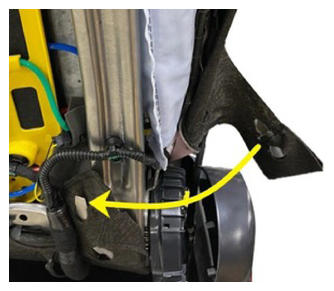

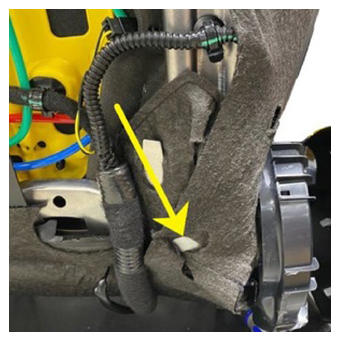

  6. Carefully secure the RH side of the driver seat back trim onto the driver seat frame.
    G15082900Courtesy of TESLA, INC.
    G15082901Courtesy of TESLA, INC.

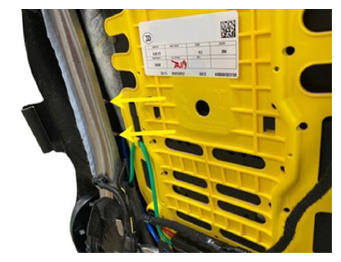

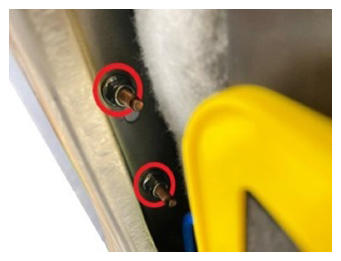

  7. Install new nuts (x2) that attach the driver seat side air bag to the seat back frame assembly.

    5.4 N.m (4.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 11 mm socket
    G15082902Courtesy of TESLA, INC.
    G15082903Courtesy of TESLA, INC.

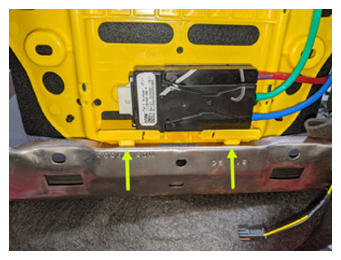

  8. Fasten the tabs (x2) that attach the lower portion of the driver seat backrest lumbar support to the seat back frame.
    G15082904Courtesy of TESLA, INC.

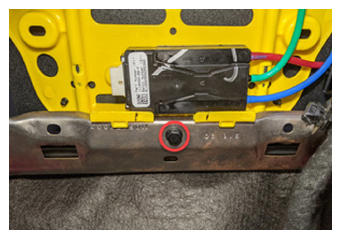

  9. Install the bolt that attaches the driver seat backrest lumbar support to the seat back frame.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15082905Courtesy of TESLA, INC.

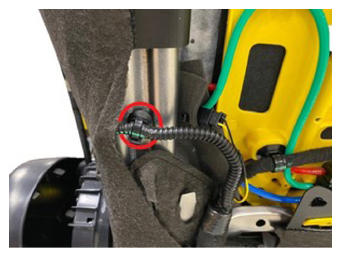

  10. Install the clip that attaches the driver seat side airbag harness to the driver seat, seat frame.
    G15082906Courtesy of TESLA, INC.

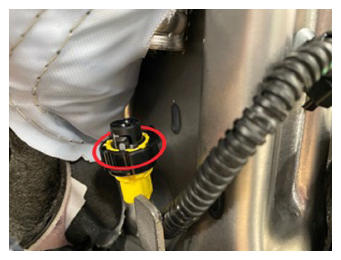

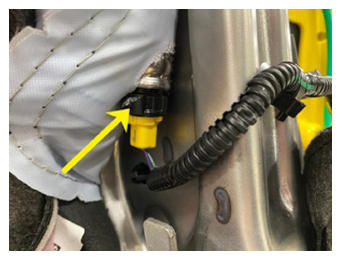

  11. Connect the driver seat side air bag electrical connector, and then secure the safety lock.
    G15082907Courtesy of TESLA, INC.
    G15082908Courtesy of TESLA, INC.

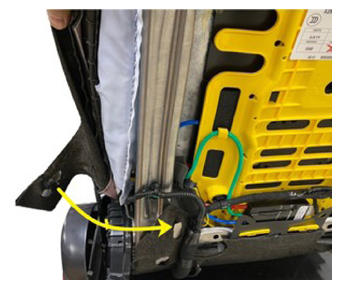

  12. Carefully secure the LH side of the driver seat, seat cover and foam onto the seat frame.
    G15082909Courtesy of TESLA, INC.
    G15082910Courtesy of TESLA, INC.

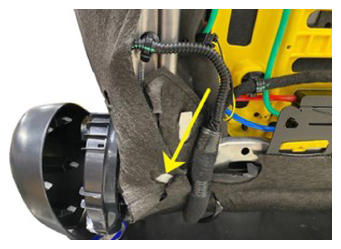

  13. Secure the retainers (x6), and then secure the trim strap onto the driver seat, seat back frame.
    G15082911Courtesy of TESLA, INC.

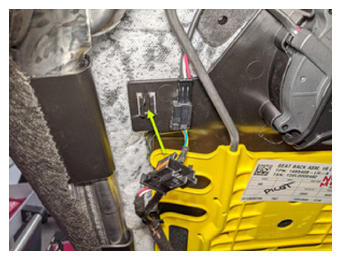

  14. Secure the female side of microphone connector and harness clips (x2) onto seat back suspension.
    G15082912Courtesy of TESLA, INC.
    G15082913Courtesy of TESLA, INC.

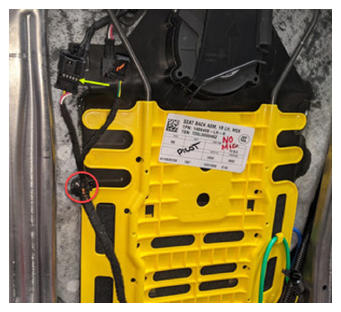

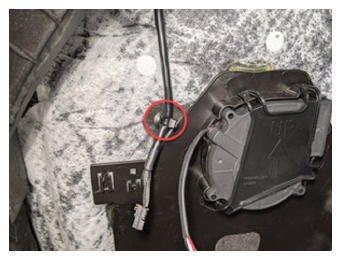

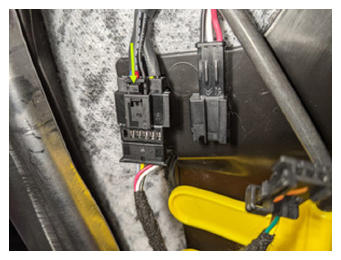

  15. Connect the driver seat microphone, and then secure harness clip onto the seat back foam.
    G15082914Courtesy of TESLA, INC.
    G15082915Courtesy of TESLA, INC.

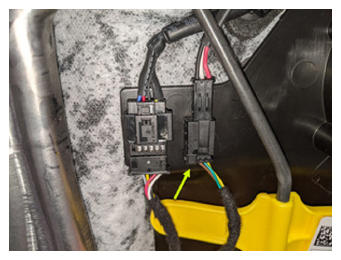

  16. Slide the fan controller electrical connector downward to install it onto the bracket, and then connect the electrical connector.
    G15082916Courtesy of TESLA, INC.

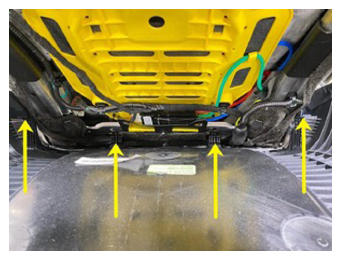

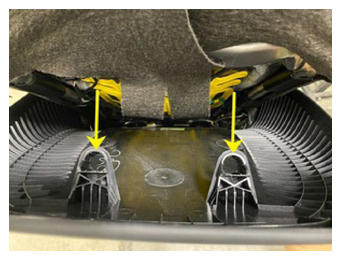

  17. With assistance, align and fully secure the clips that attach the driver seat back shell to the seat assembly.
    G15082917Courtesy of TESLA, INC.
    G15082918Courtesy of TESLA, INC.
    G15082919Courtesy of TESLA, INC.
  18. Install the driver headrest trim. See Trim - Headrest - Driver (Remove And Replace) .
  19. Position the driver seat assembly onto the seat back.
    NOTE: Protect the seat from damage.

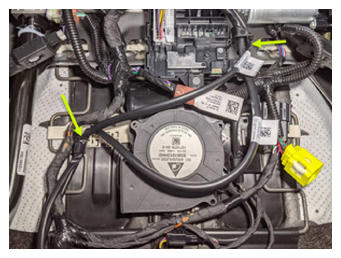

  20. Secure the clip and bracket that attach the FSC and FSB vent heat pad harnesses to the seat assembly.
    NOTE: One harness is for the seat cushion and the other is for the seat back. The upper bracket aids in routing while the lower clip secures them.
    G15082920Courtesy of TESLA, INC.

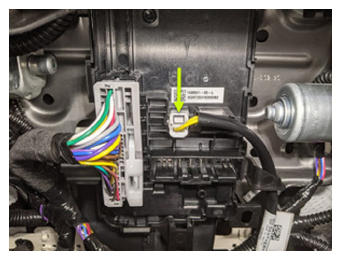

  21. Connect the FSB vent heat pad electrical connector from the seat controller.
    G15082921Courtesy of TESLA, INC.

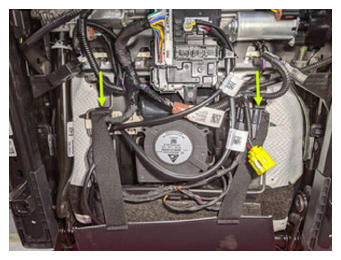

  22. Secure the seat back elastic straps (x2) to the seat frame.
    G15082922Courtesy of TESLA, INC.
  23. Install the front seat side shield RH carrier from the driver seat. See Carrier - RH - Side Shield - Inboard - Front Seat (Remove And Replace) .
  24. Install the driver seat inboard side shield. See Side Shield - Inboard - Driver Seat (Remove And Replace) .
  25. Install the front seat side shield LH carrier from the driver seat.

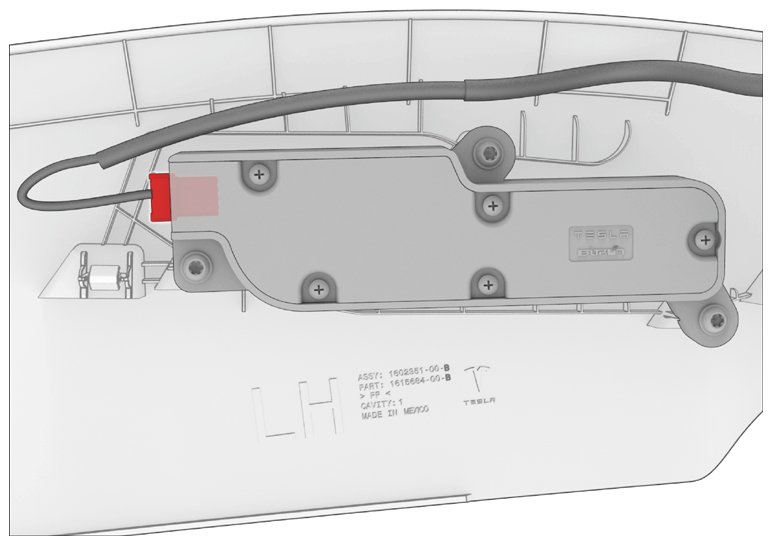

  26. Connect the electrical harness to the back rest and cushion adjust switch assembly, and then verify the functions of the seat switches.
    G15082923Courtesy of TESLA, INC.

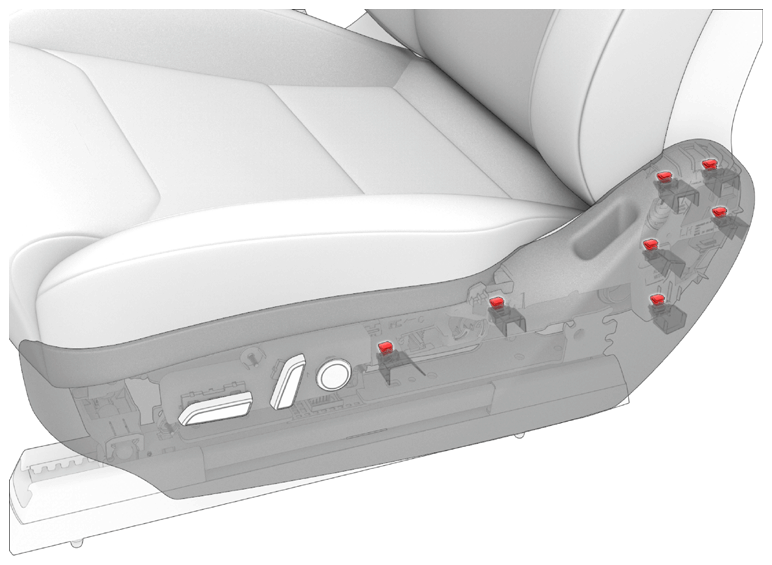

  27. Position the driver seat outboard side shield onto the seat, and then install the clips (x7) that attach the side shield to the seat.

    Tip: Apply pressure to the side shield to fully seat the clips. The side shield should sit flush against the seat cushion.

    G15082924Courtesy of TESLA, INC.

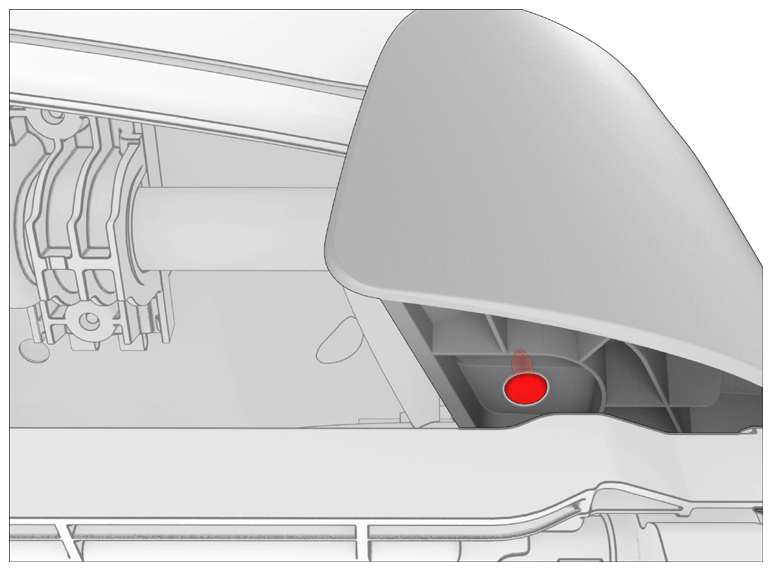

  28. Install the screw that attaches the driver seat outboard side shield to the seat assembly.

    4 N.m (2.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 2 in extension
    • Ratchet/torque wrench
    G15082925Courtesy of TESLA, INC.
  29. Install the driver seat into the vehicle. See Seat Assembly - 1st Row - LH (Remove And Replace) .
