Carrier - RH - Side Shield - Inboard - Front Seat - Remove And Replace: Remove

  1. Remove the driver seat from the vehicle. See Seat Assembly - 1st Row - LH (Remove And Replace) .
  2. Remove the driver seat inboard side shield. See Side Shield - Inboard - Driver Seat (Remove And Replace)
  3. Release the clips (x2) and tabs (x2) that attach the front seat side shield RH carrier to the front seat.
    NOTE: Release leading edge of trim, and then slide the trim away from the seat frame.

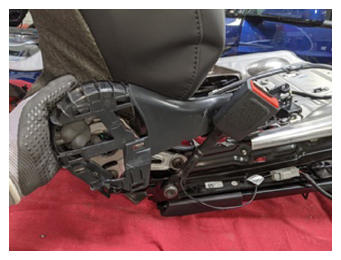

    G15082853Courtesy of TESLA, INC.

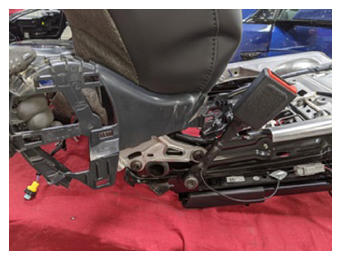

    G15082854Courtesy of TESLA, INC.

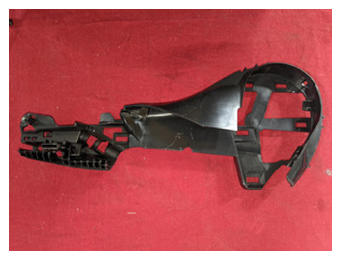

    G15082855Courtesy of TESLA, INC.
